- Multifunction time relay for universal use in automation, control and regulation or in house installations.
- All functions initiated by the supply voltage, except for the fl asher function, can use the control input to inhibit the delay (pause).
- Mode selection – according to the set function, permanently closed, permanently open, function of MEMORY LATCH with delay
- Multifunction red LED flashes or shines depending on the operating status.
Technical parameters
- Output: 1x CO, 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
- Time range: 50 ms – 30 days (10 ranges)
- Number of functions: 11
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
Download Datasheet
CRM-111H/UNI DatasheetShowing 1–18 of 32 results
CRM-111H/UNI
Multifunction time relay with inhibit delay
11 functions, time range 50ms - 30days, 1x16A changeover
CRM-112H/UNI
Multifunction time relay with inhibit delay
10 functions, time range 50ms - 30days, 1x16A + 1x16A changeover
CRM-113H/UNI
Multifunction time relay with inhibit delay
10 functions, time range 50ms - 30days, 1x16A + 2x8A changeover
CRM-121H/UNI
Multifunction time relay with galvanically separated control
11 functions, time range 50ms - 30days, 1x16A changeover
CRM-131H/UNI
Multifunction time relay with three control inputs
11 functions, time range 50ms - 30days, 1x16A changeover
CRM-161
Multifunction time relay - economy version
6 functions, time range 0.1s - 10h, 1x8A changeover
CRM-2H/UNI
Asymmetric flasher
2 functions, time range 0.1s - 100days, 1x16A changeover
CRM-82TO/UNI
True off delay time relay
2 functions, time range 0.1s - 10min, 2x8A changeover
CRM-91H/UNI
Multifunction time relay
10 functions, time range 0.1s - 10days, 1x16A changeover
CRM-92H/UNI
Multifunction time relay
10 functions, time range 0.1s - 10days, 1x16A + 1x16A changeover
CRM-93H/UNI
Multifunction time relay
10 functions, time range 0.1s - 10days, 1x16A + 2x8A changeover
PTRA-216K/UNI
Multifunction time relay with three control inputs
11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover
PTRA-216T/UNI
Multifunction time relay with three control inputs
11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover
PTRM-216K/UNI
Multifunction time relay with potential-free control input
11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover
PTRM-216KP/UNI
Multifunction time relay with inhibit delay
11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover

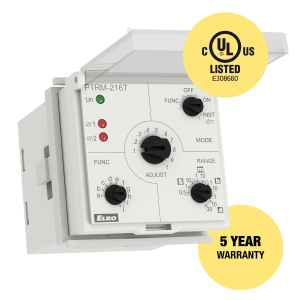

PTRM-216T/UNI
Multifunction time relay with potential-free control input
11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover
PTRM-216TP/UNI
Multifunction time relay with inhibit delay
11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover
SHT-13
SHT-13/2
Multifunction digital time switch with Wi-Fi connection
Multifunction, range 24 – 240 V AC/DC1/2 output(s)$67,50 – $72,20
