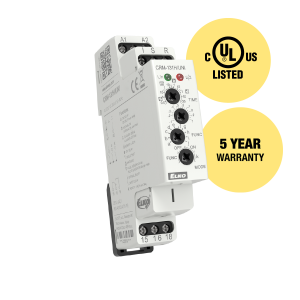

Description
- Multifunction economy version of time relay for universal use in automation, control and regulation or in house installations.
- Universal supply voltage: AC 24 – 240 V (AC 50/60 Hz) and DC 24V.
- Comfortable and well-arranged function and time-range setting by rotary switches.
- Time scale 0.1 s – 10 hrs divided into 6 ranges: (0.1 s – 1 s/1 s – 10 s/0.1 min – 1 min/1 min – 10 min/0.1 hrs – 1 h/1 h – 10 hrs).
- Output contact: 1x changeover/SPDT 8 A.
- Multifunction red LED flashes or shines depending on the operating status.
Technical parameters
- Output: 1x CO, 8 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC 24-240 V and DC 24 V (AC 50/60Hz)
- Time range: 0.1 s – 10 hrs (6 ranges)
- Number of functions: 6
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
