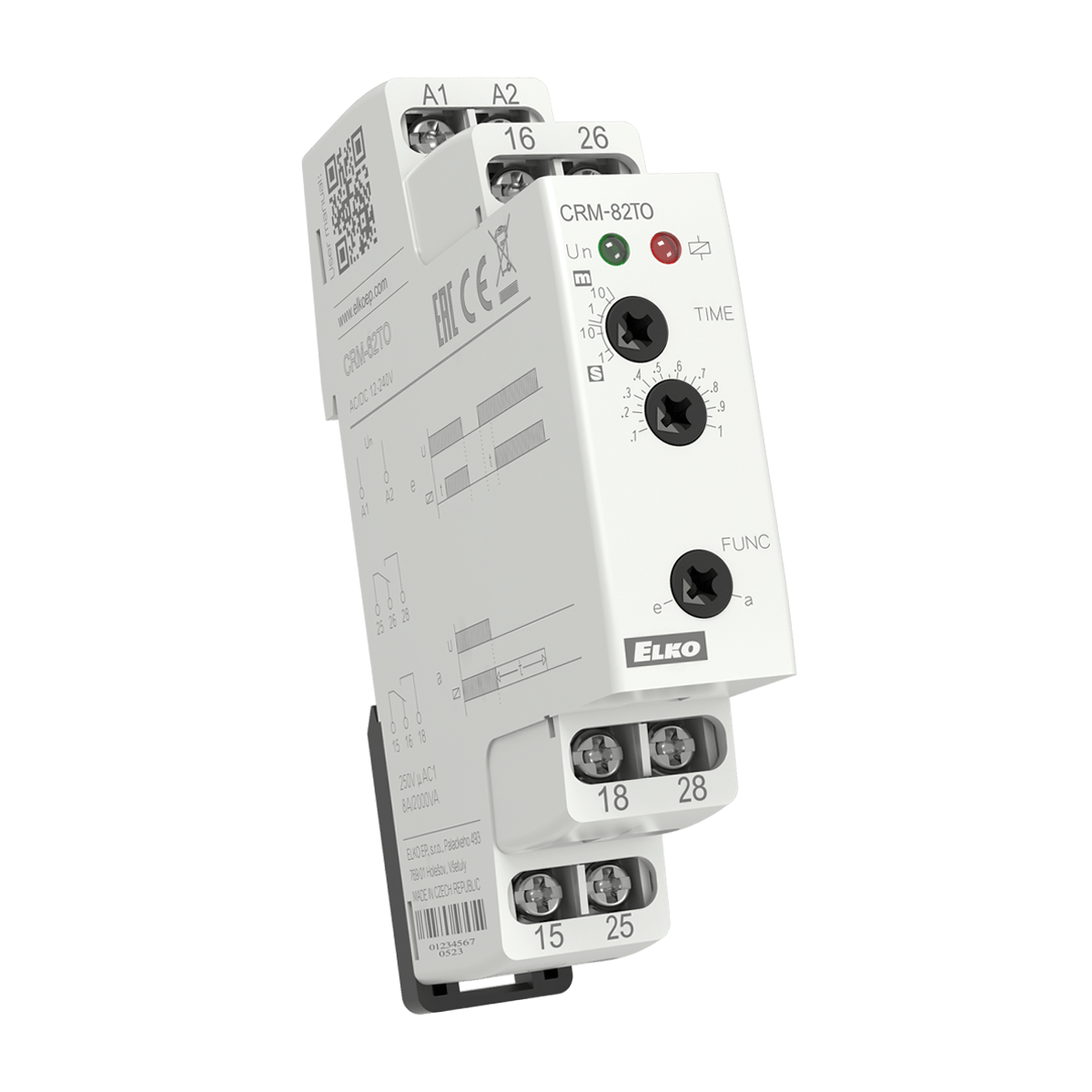

CRM-82TO

True off delay time relay

2 functions, time range 0.1s – 10min,
2x8A changeover

EAN: 8595188137614 Category:

Description

  • „True OFF“ relay – relay timing without supply voltage.
  • Example of use: back-up source for Delay OFF in case of voltage failure (e.g. emergency lighting, emergency respirator, or protection of el. controlled doors – in case of fire).
  • 2 time functions adjustable by rotary switch:
    a – Delayed return after disconnecting of supply
    e – Delayed start.
  • Time range (adjustable by rotary switch and fi ne setting by potentiometer): 0.1 s – 10 min.
  • Interruptions in the power supply must take time steps (tens to hundreds of milliseconds).
  • Output status indicated by red LED (only in case of supply voltage connection).

Technical parameters

  • Output: 2x CO, 8 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
  • Time range: 0.1s – 10 min (4 ranges)
  • Number of functions: 2
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
