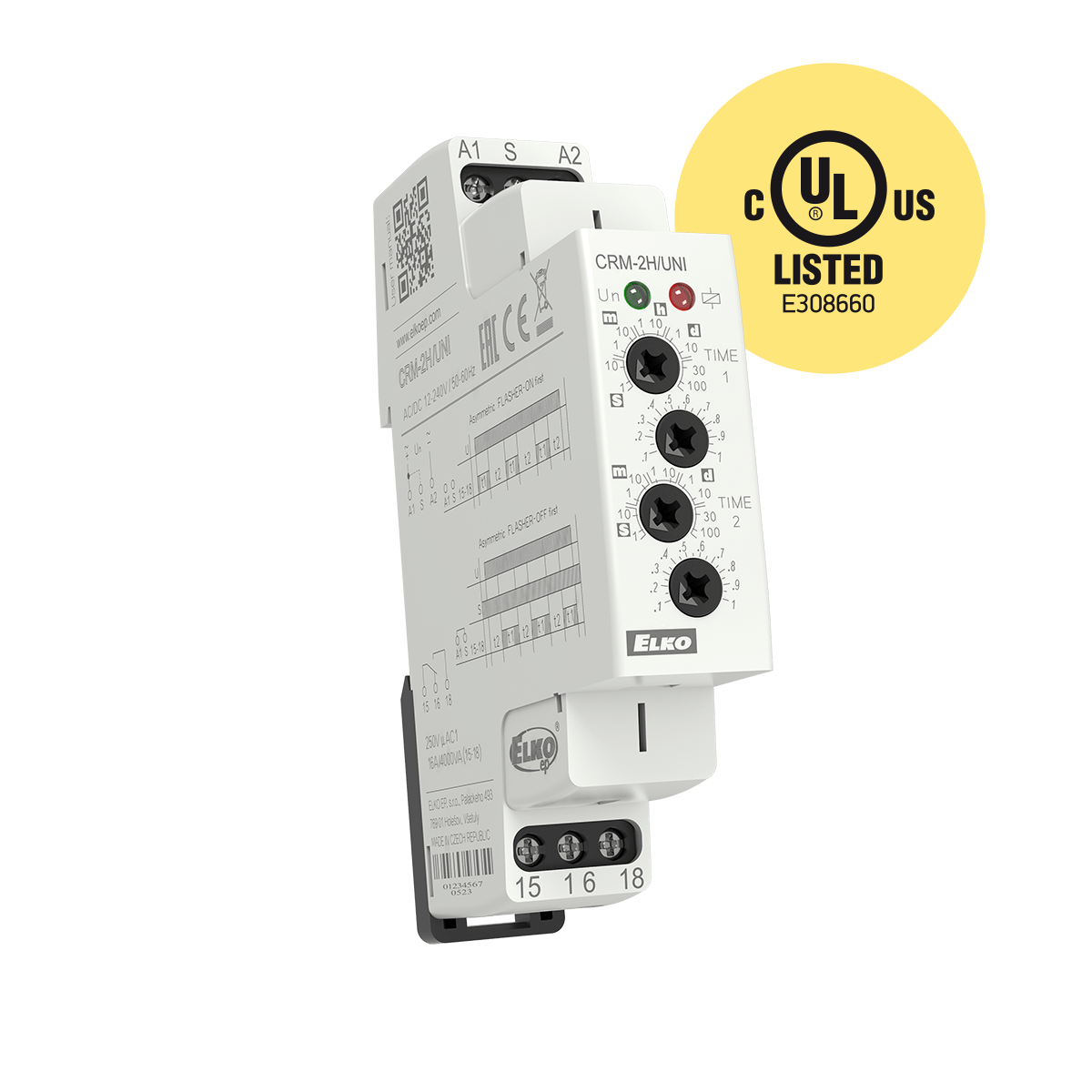

CRM-2H

Asymmetric flasher

2 functions, time range 0.1s – 100days,
1x16A changeover

EAN: 8595188113007 Category:

Description

  • Flasher with independent adjustable switch ON and switch OFF.
  • Used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, illuminated advertising, etc.
  • 2 time functions:
    1) Asymmetric FLASHER – ON first
    2) Asymmetric FLASHER – OFF first
  • Function choice is done by an external jumper of terminals S-A1.
  • Time scale 0.1 s – 100 days divided into 10 time ranges.
  • Time range setting via rotary switch.
  • Fine time setting by potentiometer.
  • Multifunction red LED fl ashes or shines depending on the operating status.

Technical parameters

  • Output: 1x CO, 16 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V or AC 230 V (AC 50-60 Hz)
  • Time range: 0.1s – 100 days (10 ranges)
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Download Datasheet

Datasheet_CRM-2H
