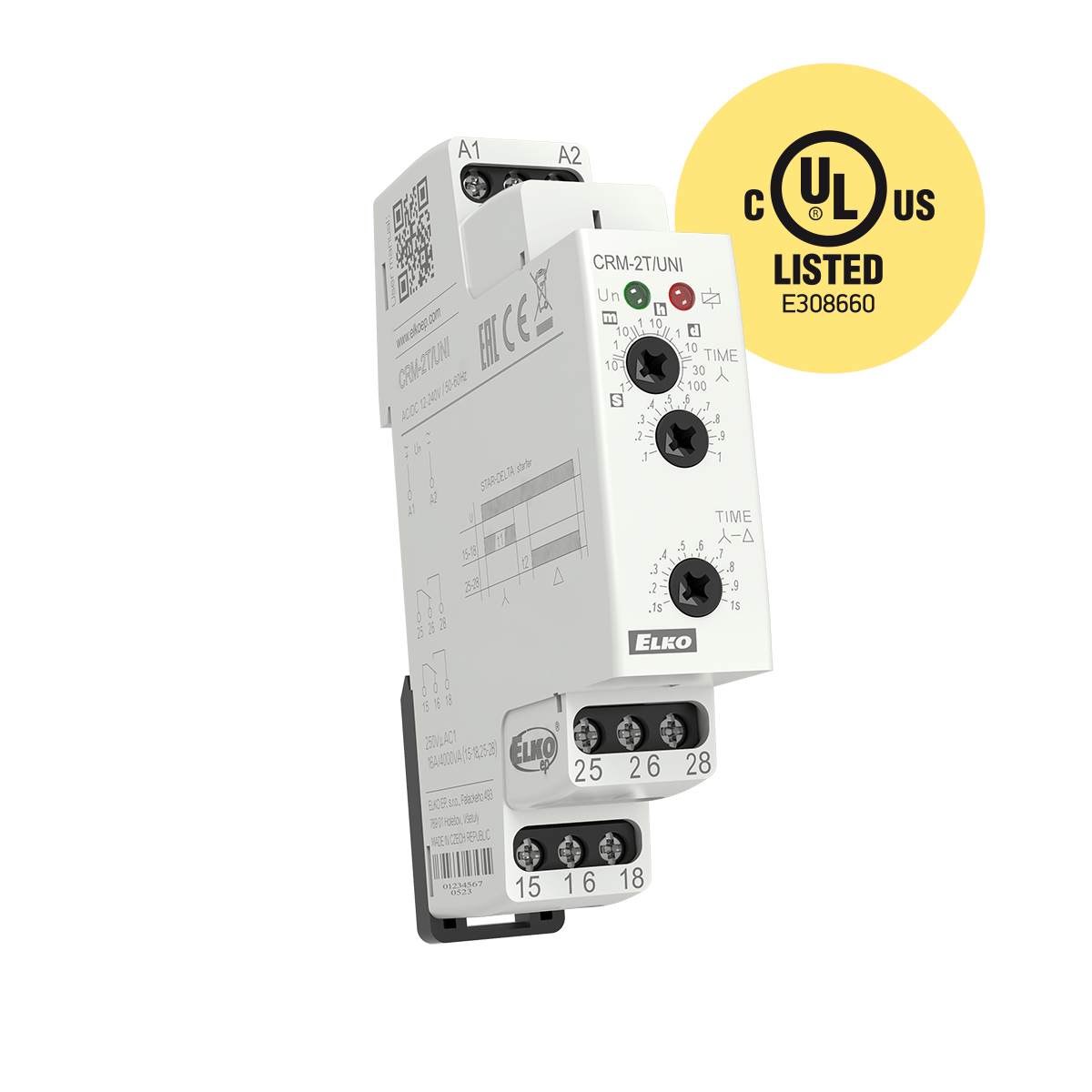

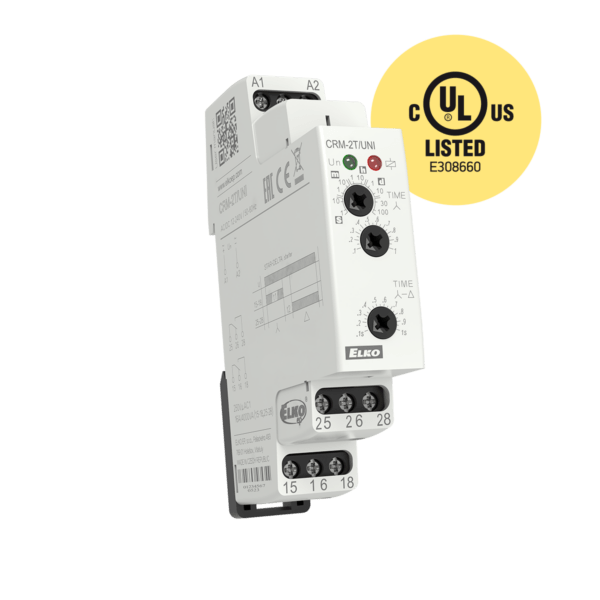

CRM-2T

Star / Delta time relay

1 function, time range t1: 0.1s – 100days,
t2: 0.1-1s, 2x16A changeover

EAN: 8595188112437 Category:

Description

  • It serves for delay ON of motors star/delta.
  • Time t1 (star):
    – time range setting by rotary switch
    – fine time setting by potentiometer
  • Time t2 (delay) between star / delta
    – fine time setting by potentiometer
  • Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

  • Output: 2x CO, 16 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V or AC 230 V or AC 24-480 V
  • Time range: t1: 0.1s – 100 days, t2: 0.1s – 1s
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
