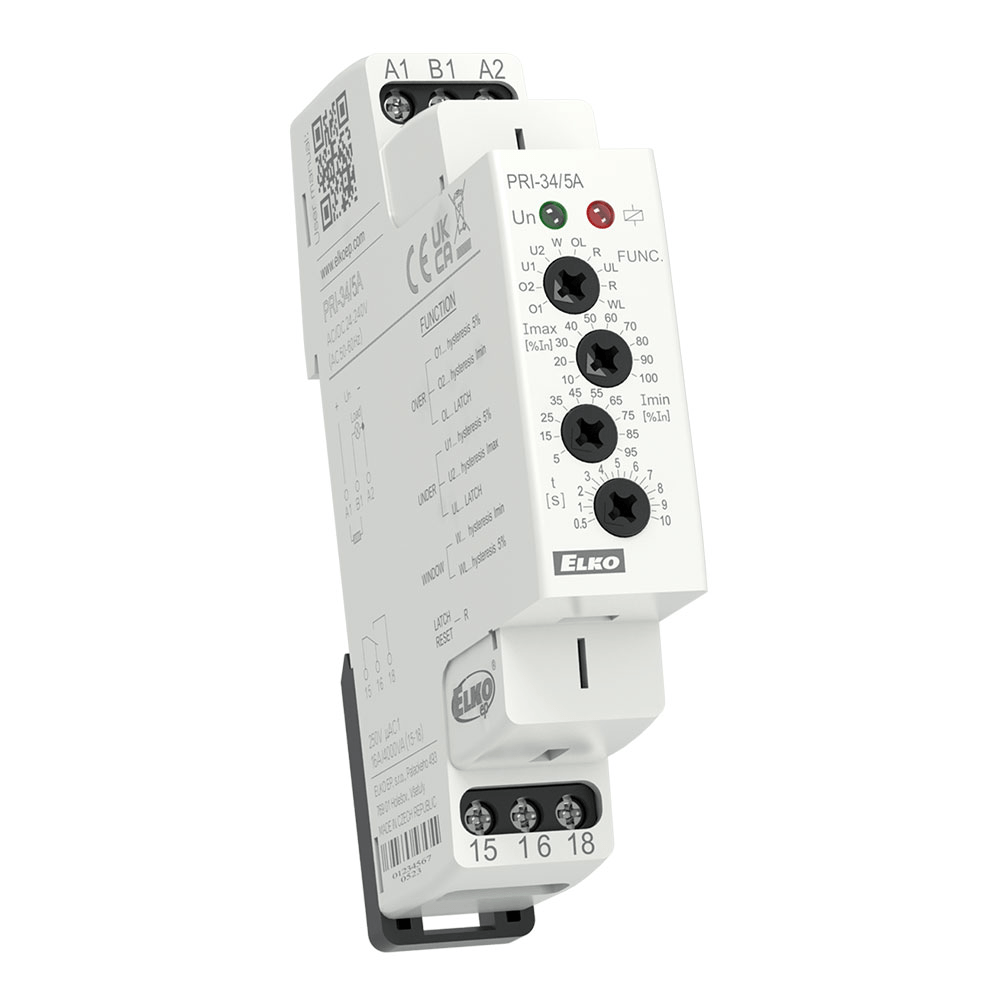

Multifunction current monitoring relay

1-phase, multifunction,
range 0.1-1/2/5/8/16A AC

EAN: Choose Variant SKU: N/A Category:


  • It is used to monitor the value of alternating current in, e.g.: motors, heating cables, illumination and other devices
  • Power supply and monitoring circuits are not galvanically isolated
  • Measures true root mean square value of the current – TRUE RMS
  • Monitors current exceeding the upper current limit (Imax) and falling below the lower current limit (Imin) – according to the selected function
  • Smooth adjustment of both current limits
  • Adjustable TRIP delay (to eliminate short-term current spikes)
  • Option to select functions with error state memory (Latch)
  • Possibility to extend the current range using an external current transformer

Technical parameters

  • Voltage type: AC
  • Monitored levels: undercurrent, overcurrent
  • Monitored range: 1 – 16 A (50-60 Hz)
  • Output type: 1x CO, 16 A
  • Supply voltage (frequency): AC/DC 24-240 V (AC 50-60 Hz)
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Download Datasheet


Additional information

Tripping Current

1A, 2A, 5A, 8A, 16A
