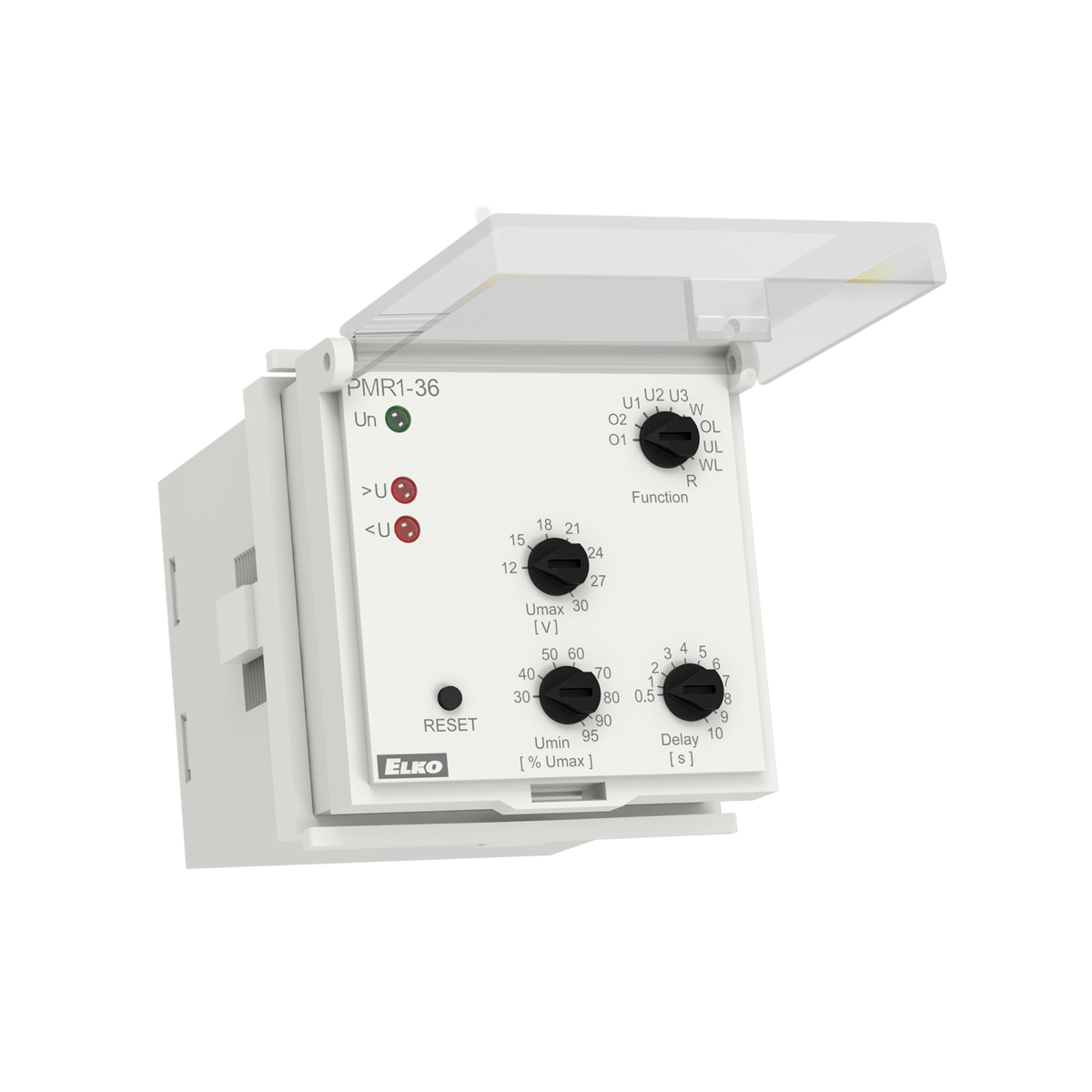

PMR1-36
PMR1-36/2

$117,90$121,90

Voltage monitoring relay

Multifunction, range 12-30 DC,
1/2 output(s)

EAN: Select Variant SKU: N/A Category:

Description

  • It is used to monitor the value of alternating or direct voltage in 1-phase circuits.
  • Supply voltage from monitored voltage.
  • Monitors voltage exceeding the upper voltage level (Umax) and falling below the lower voltage level (Umin) – according to the selected function.
  • Smooth adjustment of both voltage levels – the lower level Umin is set in % of the upper-level Umax.
  • Adjustable time delay (to eliminate short-term voltage drops and peaks).
  • Option to select functions with fault state memory (Latch).
  • The fault state memory can be reset with a button on the panel (RESET).
  • Measures true root mean square value of the voltage – TRUE RMS.

Technical parameters

  • Overvoltage: Yes
  • Undervoltage: Yes
  • Monitored range: DC 6 – 30 V
  • Output contact: 1x CO, 16 A
  • Housing: 8-PIN into socket
  • Power supply: from monitored voltage
  • Dimensions: 48 × 48 × 79 mm (1.89˝ × 1.89˝ × 3.11˝)

Download Datasheet

Datasheet_PMR1-31_PMR1-36_PMR1-39

Additional information

No. of Outputs

1, 2
