Description

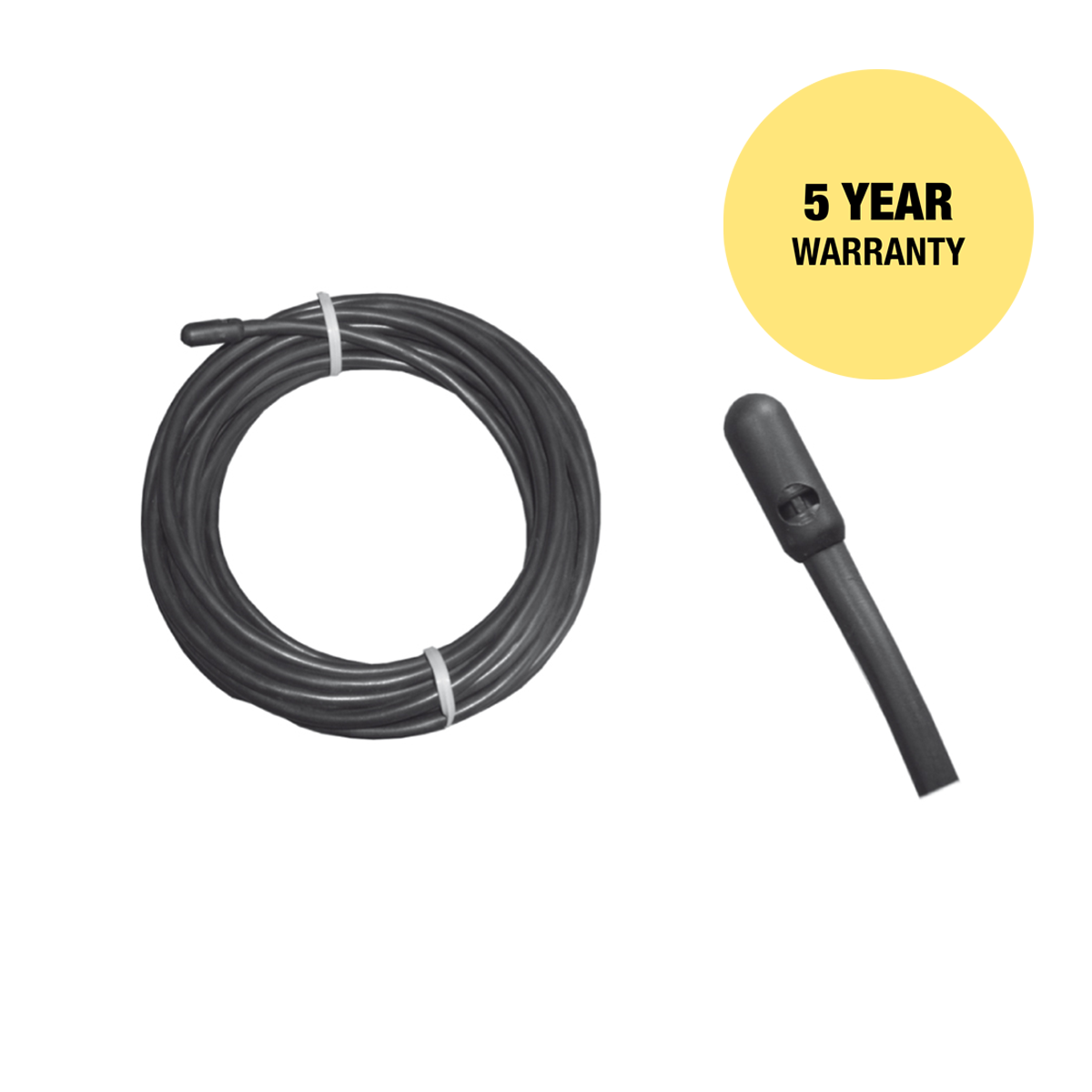

- Thermister temperature sensors made of a Negative Temperature Coefficient (NTC) thermistor embedded in a PVC or metal sleeve with a thermally conductive sealer.
- The lead-in cable for the TC sensor is made of 2-conductor 24 AWG wire (0.02 in² cross-sectional area).
- Temperature sensors can be connected directly to the terminal block.
- Cable lengths can not be changed, connected or modified.
Technical parameters
- Operating temperature: –4 °F to +176 °F
- Sensing element: NTC thermistor, 12 kΩ ±5% (at 77 °F)
- Cable material: PVC unshielded, 2× 24 AWG
- Length: 4″ / 10′ / 20′ / 40′
- Weight: 0.18 oz / 2.47 oz / 4.59 oz / 8.82 oz
