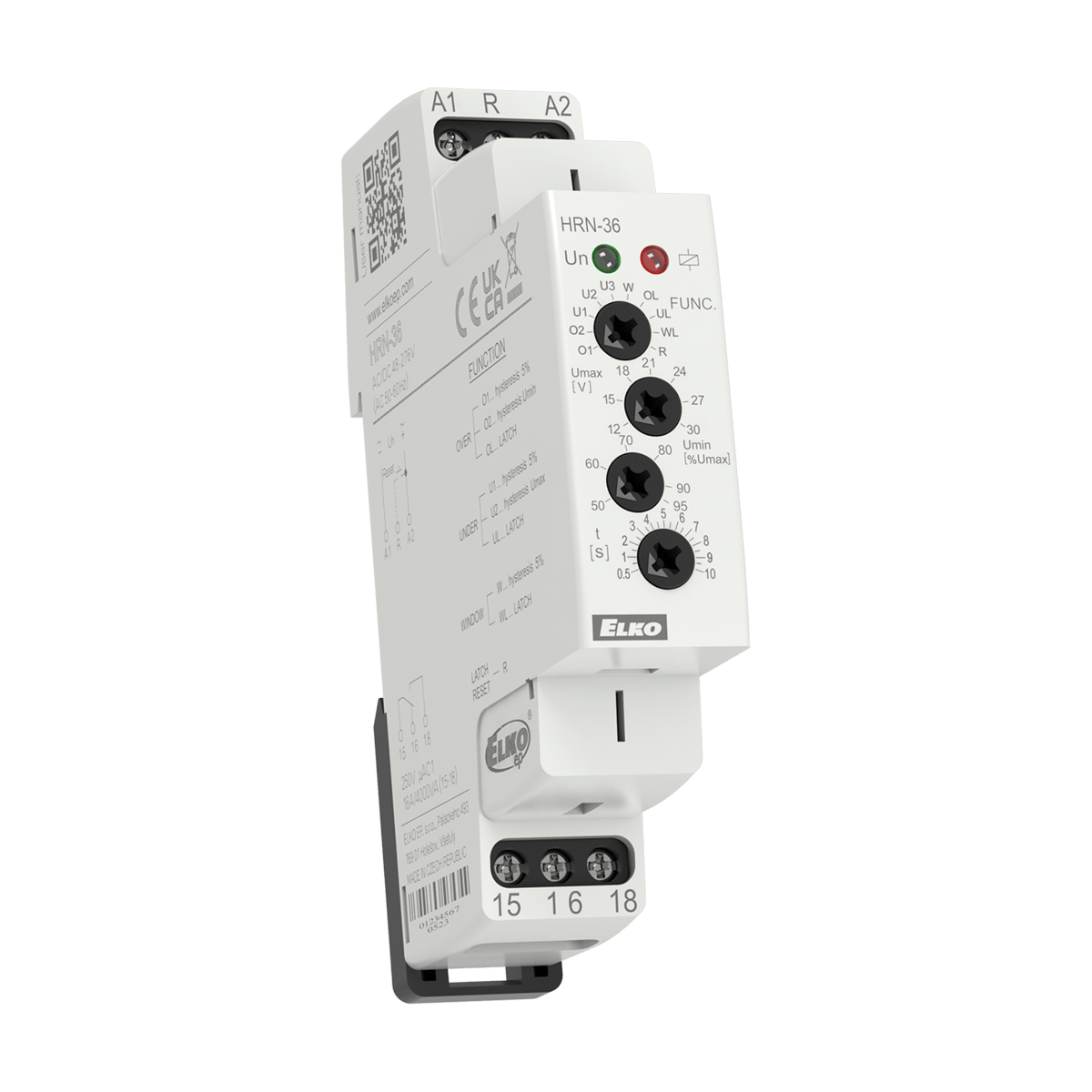

HRN-36

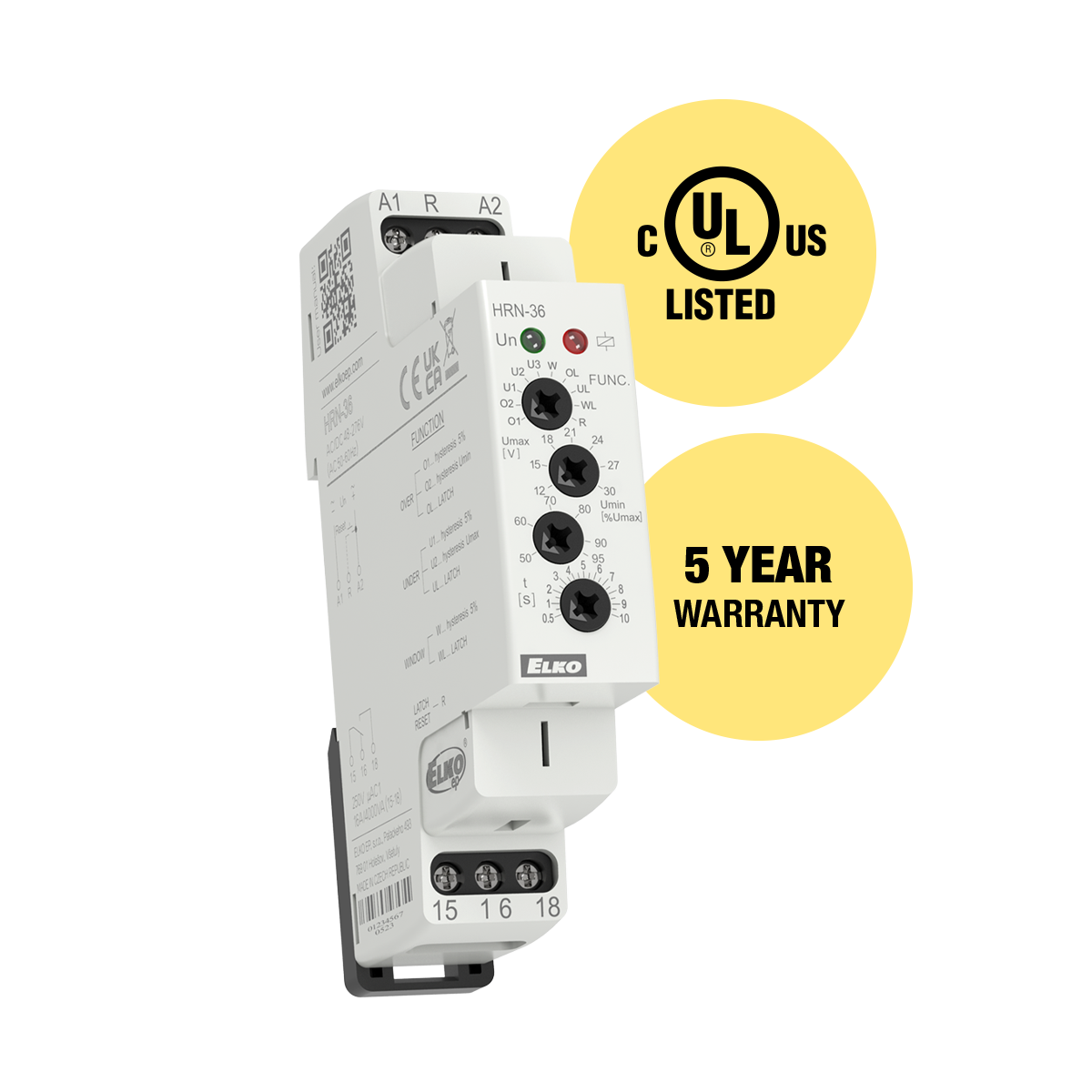

HRN 36/2

$77,90$82,30

Voltage monitoring relay

Multifunction, range 12-30 DC,
1/2 output(s)

EAN: Select Variant SKU: N/A Category:

Description

  • It is used to monitor the value of direct voltage in 1-phase circuits.
  • Supply voltage from monitored voltage.
  • Monitors voltage exceeding the upper voltage level (Umax) and falling below the lower voltage level (Umin) – according to the selected function.
  • Smooth adjustment of both voltage levels – the lower level Umin is set in % of the upper-level Umax.
  • Adjustable time delay (to eliminate short-term voltage drops and spikes).
  • Option to select functions with fault state memory (Latch).
  • The fault state memory can be reset by the control input (R).
  • Measures true root mean square value of the voltage – TRUE RMS.

Technical parameters

  • Overvoltage: Yes
  • Undervoltage: Yes
  • Monitored range: DC 6 – 30 V
  • Output contact: 1x CO, 16 A
  • Housing: 1-MODULE
  • Power supply: from monitored voltage
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Download Datasheet

Datasheet_HRN-31, HRN-32-2, HRN-36, HRN-39

Additional information

No. of Outputs

1, 2
