Description

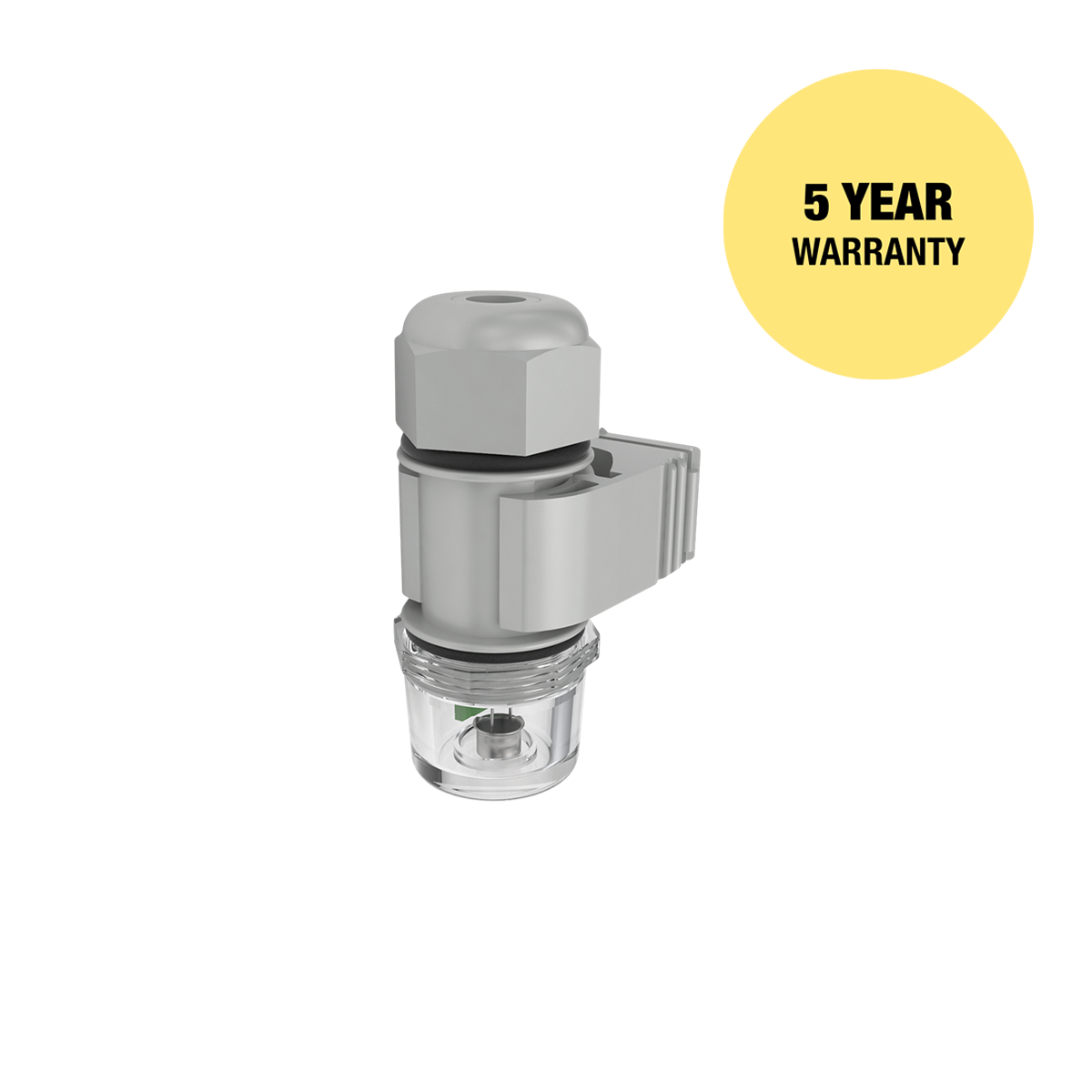

- External photosensor for twilight switch SOU-1.
- Sensor is installable to panel (by screw-able transparent cover) to opening with diameter 20 mm (0.79˝).
- A part of the sensor is a plastic holder for placing into the wall or to another place.
- Protection degree is IP65.
Technical parameters
- Protection degree: IP 65
- Terminal block: push-in terminals
- Operating temperature: -30 to +70 °C (-22 to 158 °F)
- Storage temperature: -30 to +70 °C (-22 to 158 °F)
- Cable sizes:
- solid: 0.2 to 0.75 mm2 (24 – 18 AWG)
- stranded + cable end: 0.25 to 0.34 mm2 (30-28 AWG)
- Sensor cable length: max. 50 m (164″)
- Diameter of connecting cable: max. 6.5 mm (0.3˝)
- Dimensions: 58 x 24 mm (2 x 0.9˝)
