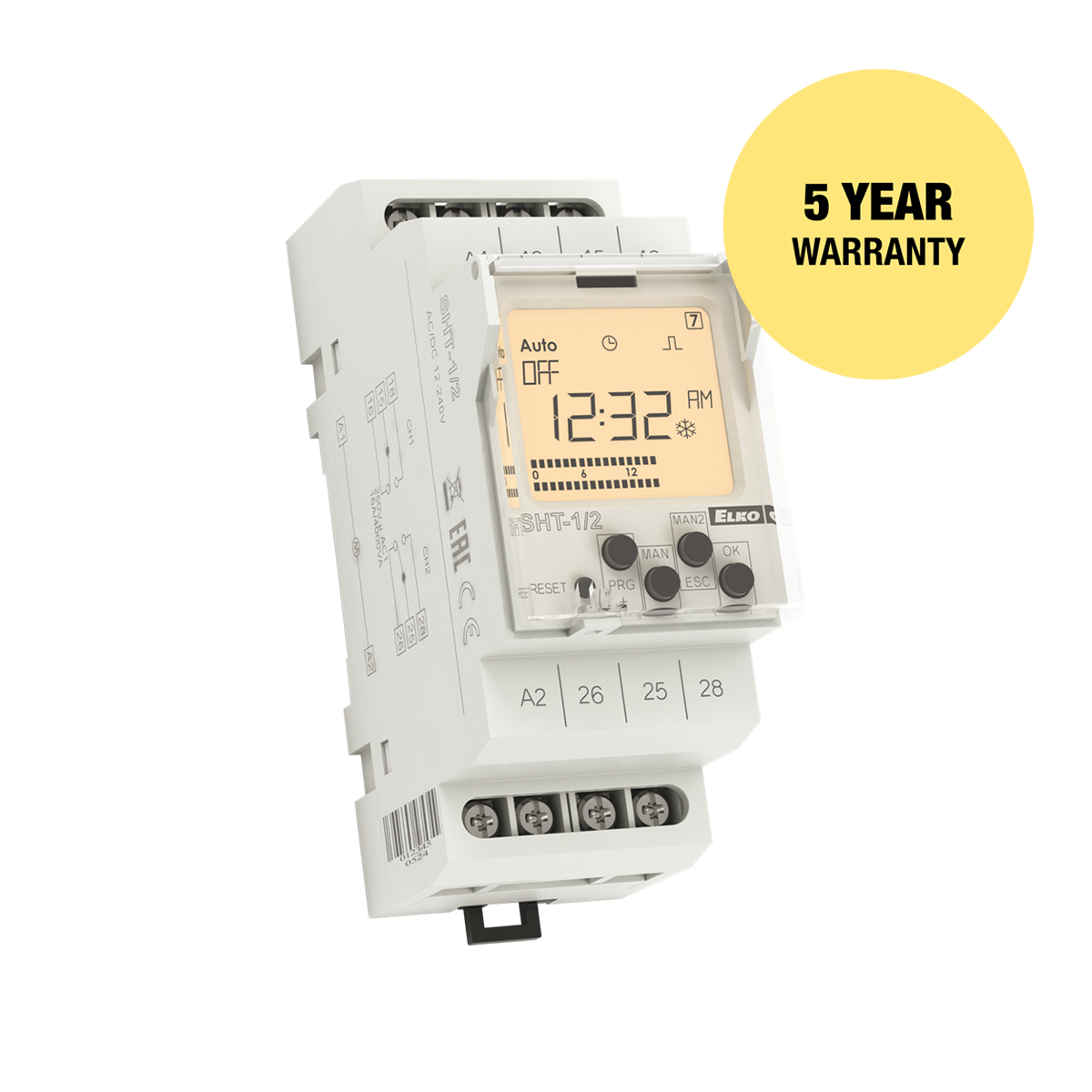

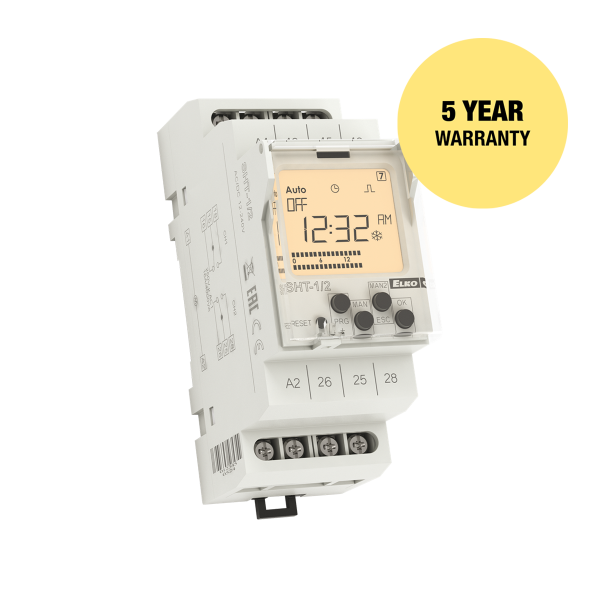

Description
- It serves to control various types of appliances depending on real time with the possibility of daily, weekly, monthly and yearly programs.
- Switching: according to program (AUTO)/permanently manually (MAN)/ random.
- Choice of 1-channel or 2-channel design, each channel is adjustable individually.
- Sealable transparent front panel cover, easy control with 4 buttons.
- Cyclic/pulse output option.
- Real-time backup – up to 3 years using built-in battery.
- Automatic summer/winter time transition (can be switched off in settings).
- Supply voltage is divided into two types: AC 230 V or AC/DC 12 – 240 V.
Technical parameters
- Program: daily, weekly, monthly, yearly
- Replaceable battery: no
- Output: 1/2x CO, 16 A (AgSnO2)
- Housing: 2-MODULE
- Supply voltage (frequency): AC/DC 12-240 V or AC 230 V (AC 50/60 Hz)
- Dimensions: 90 x 35 x 64 mm (3.5˝ x1.4˝ x 2.5˝)
