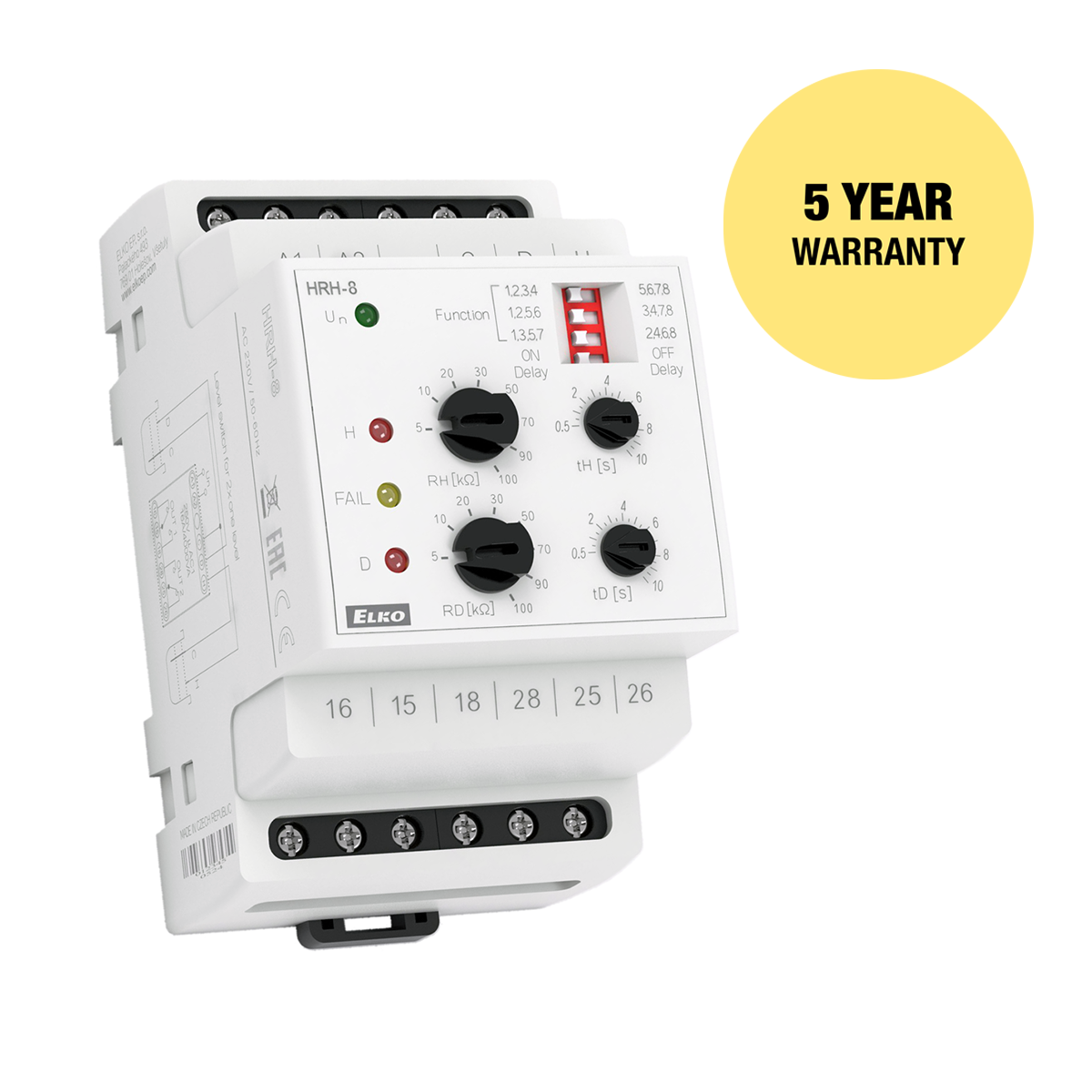

Description
- Relay is designed to control the level of conductive liquids in wells, tanks, pools, tankers, reservoirs,… (replacement HRH-1).
- Galvanically isolated supply and guard circuits.
- Within one device, the following configurations can be selected:
- 2x one-level monitoring (in separate tanks)
- 1x two-level monitoring (in one tank)
- pumping from one tank to another.
- DIP switch selection on the front panel (8 functions).
- Adjustable probe sensitivity (for each probe separately).
- Adjustable relay switching delay (for each probe separately).
- 10 Hz watch frequency prevents polarization of the liquid and increases resistance to interference by network frequency
Technical parameters
- Output: 2x CO, 16 A
- Sensitivity: 5-100 kΩ
- Number of functions: 8
- Housing: 3-MODULE
- Supply voltage: AC/DC 24 V
- Dimensions: 90 x 52 x 65 mm (3.5˝ x 2˝ x 2.6˝)
