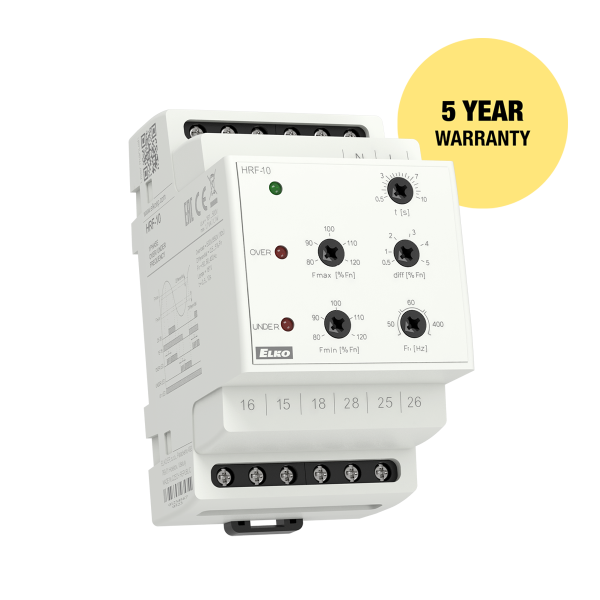

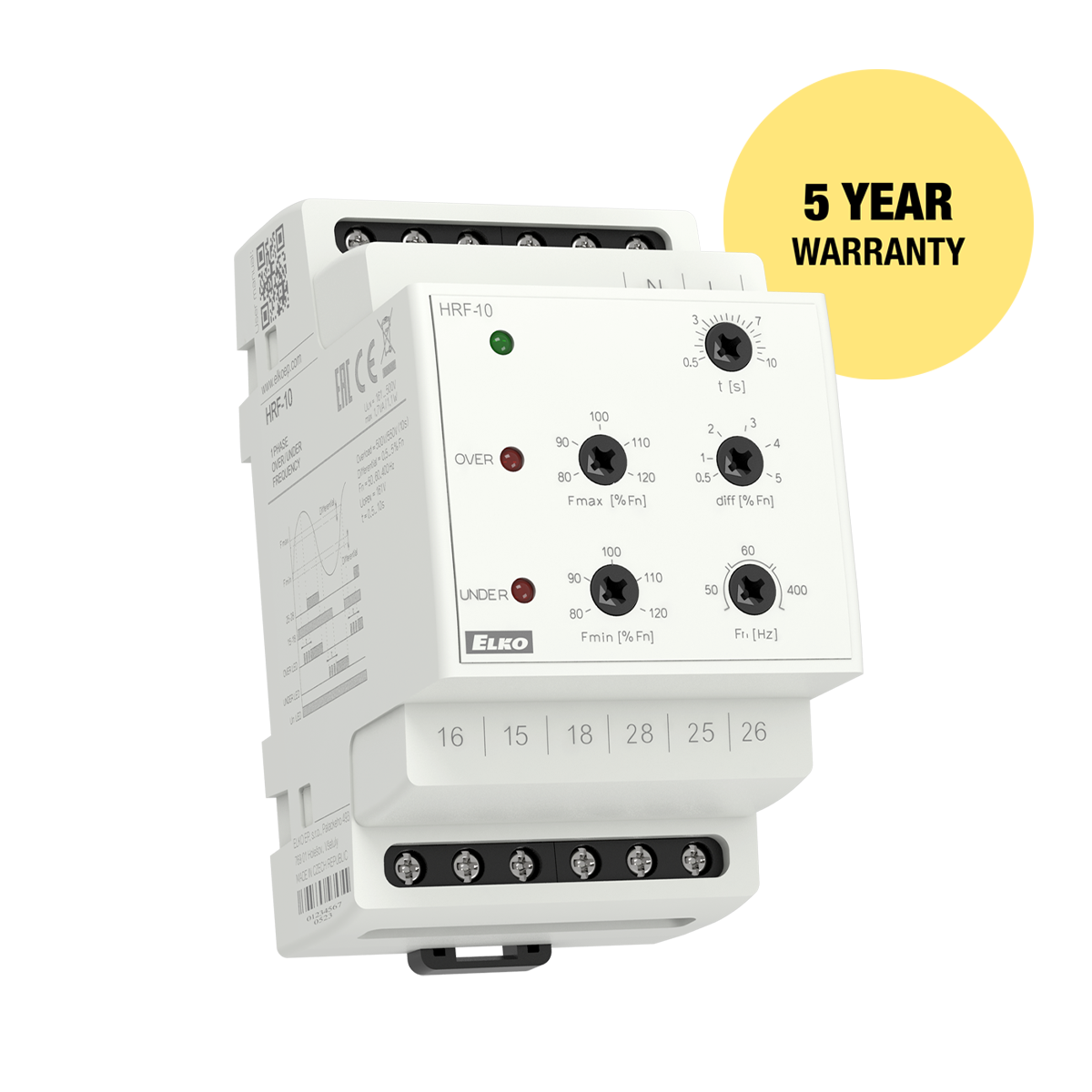

Description
- The relay serves to monitor frequency of AC voltage, e.g. in photovoltaic power stations, generators.
- The monitored frequency 50/60/400 Hz is selected by a switch.
- Two adjustable levels of frequency (Fmin, Fmax) in the range of 80 – 120 % Fn.
- Adjustable difference level.
- Adjustable delay level.
Technical parameters
- Circuit monitoring: 1-phase
- Adjustable range: 40-60 Hz, 48-72 Hz, 320-480 Hz
- Output: 2x CO, 8 A
- Housing: 3-MODULE
- Power supply: AC 161-500 V (50/60/400 Hz)
- Dimensions: 90 x 52 x 65 mm (3.5˝ x 2˝ x 2.6˝)
