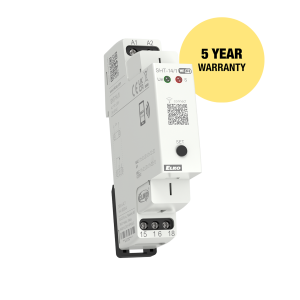

Wi-Fi-Enabled-Relays

• All programs in one device (daily, weekly, yearly and astronomical).
• UNIversal supply voltage in the range of AC/DC 24 – 240 V (AC 50-60 Hz).
• Simple setting after the first start-up.
• User-replaceable battery to back up the set time during power outages.
• Built-in web server for setup and control via Wi-Fi connection.
• Time synchronization through NTP server (require internet connection).
• Possibility of permanent connection to the local network.
• New well-arranged display with white backlight.
• ASTROnomic program: manual entry of coordinates or selecting from one of more than 500 preset cities.
  • selection of days of the week
  • astro interrupt function (night break): controls the sunrise/sunset times and compares them with the set OFF/ON times
  • high position accuracy thanks to two decimal places in latitude/longitude
• One/two channel design (each with an operating hours counter).
• Pulse/cycle output mode.
• Transition of summer/winter time – AUTO or OFF.
• Sealable transparent front panel cover.
• PIN code protection against unauthorized changes.
• Wireless firmware update – current version 1.40

Technical parameters

• Program: daily, weekly, yearly and astronomical
• Replaceable battery: yes
• Wireless communication: Wi-Fi (2.4 GHz)
• Output: 1x/2x changeover, 16 A
• Housing: 2-MODULE
• Supply voltage (frequency): AC/DC 24 – 240 V (AC 50-60 Hz)
• Dimensions: 90 × 35 × 64 mm
