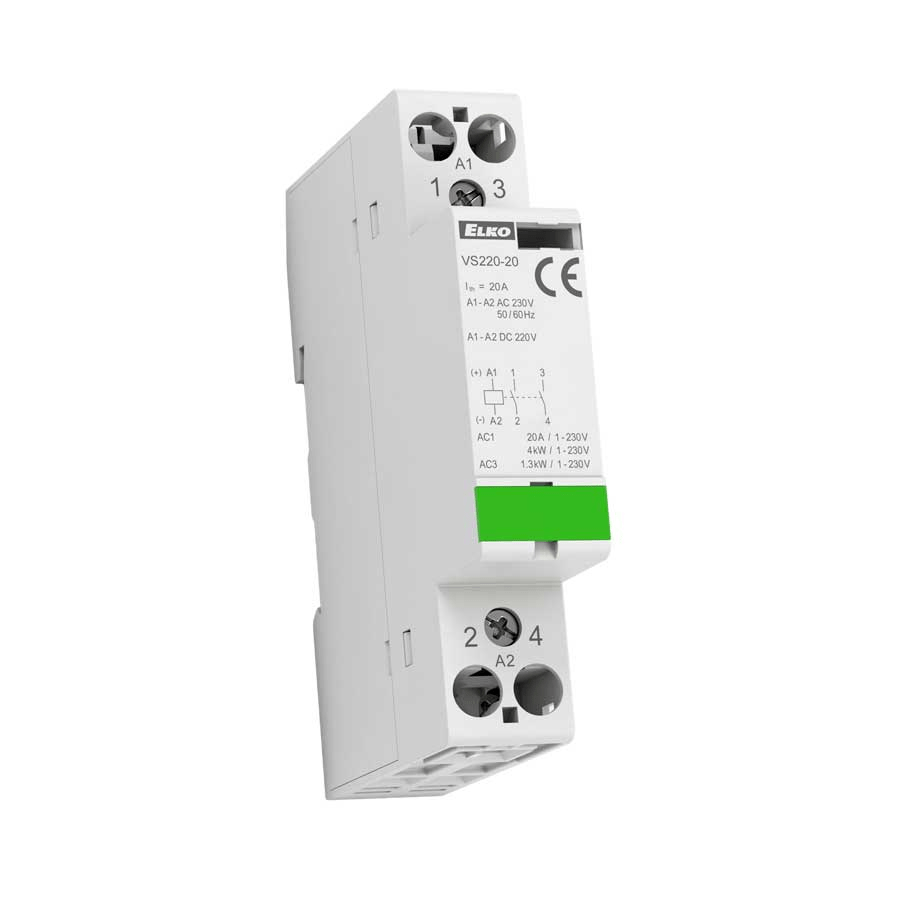

VS220

$31,20$34,80

Installation contactor

2x20A NO/NC/Combination

EAN: Select Variant SKU: N/A Category:

Description

  • For switching of electric circuits, especially for resistave loads and three-phase induction motors.
  • Cover IP20, IP40 protection caps of all contactor terminals are shipped to order.

Technical parameters

  • Universal supply voltage AC/DC 12 – 240 V or AC 230 V.
  • It is produced in configuration of switching and breaking contacts: 20, 11, 02.
  • Number of contacts: 2
  • 1-MODULE, DIN rail or pannel mountaing.

Download Datasheet

Datasheet_VS120_220_420_425_440_463

Additional information

Supply Voltage

230V AC/DC, 120V AC/DC, 24V AC/DC, 230V AC, 120V AC, 110V AC, 24V AC

Contacts

1 x NO, 1x NC, 2x NO, 2x NC
