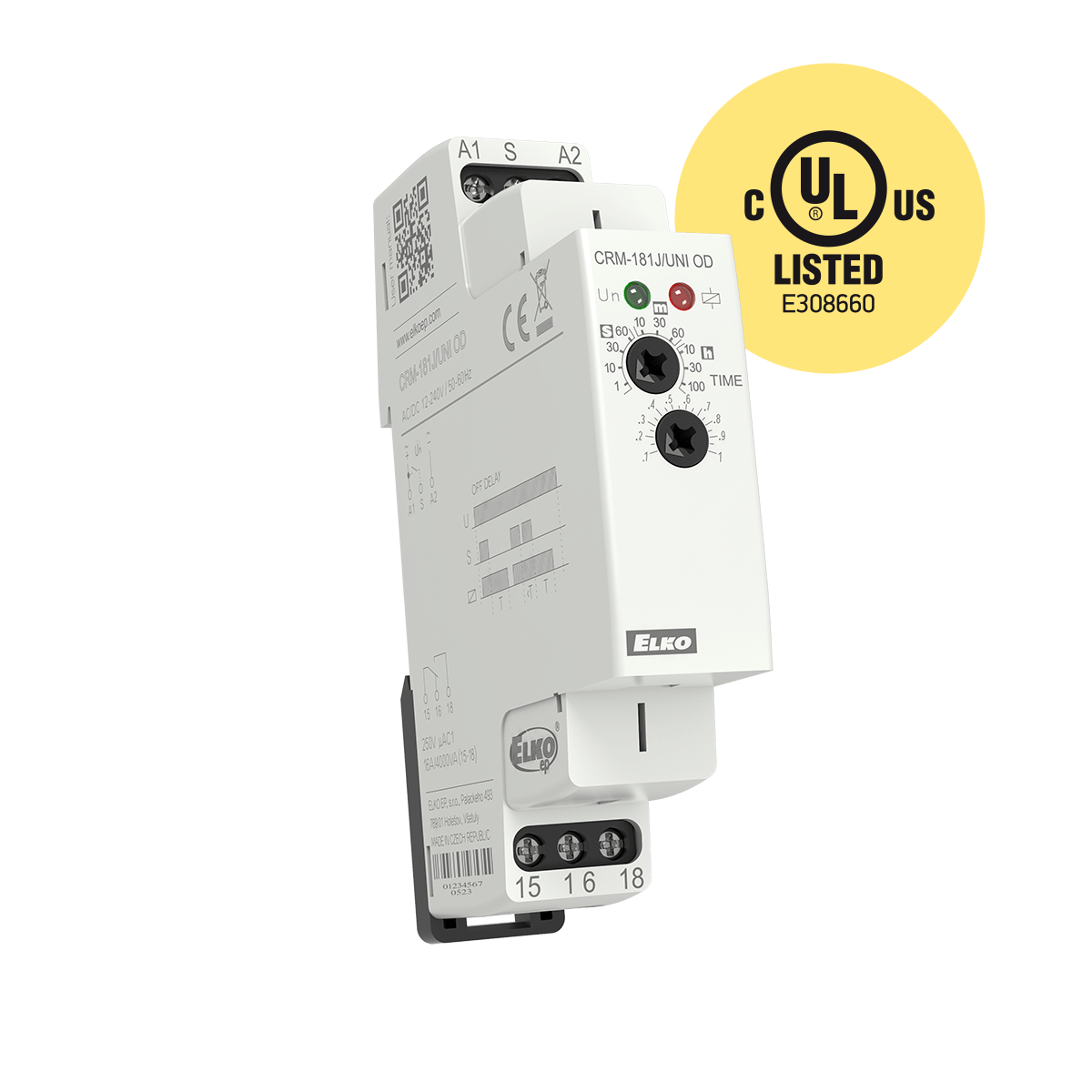

CRM-181J

$54,40

Single-function time relay

1 function, time range 0.1s – 100h,
1x16A changeover

EAN: Select Variant SKU: N/A Category:

Description

  • Single function time relays are suitable for applications where there is a clear function requirement in advance and are suitable for universal use in automation, control and regulation or in house installations.
  • Choice of four types: ZR, ZN, BL, OD.
  • All functions initiated by the supply voltage can use the control input to inhibit the ongoing delay (pause).
  • Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

  • Output: 1x CO, 16 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V (AC 50-60 Hz)
  • Time range: 0.1s – 100 hrs (10 ranges)
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Download Datasheet

Datasheet_CRM-181J_CRM-183J

Additional information

Function

On Delay (ZR), Off Delay (OD), Interval On (ZN), Flasher – On First (BL)
