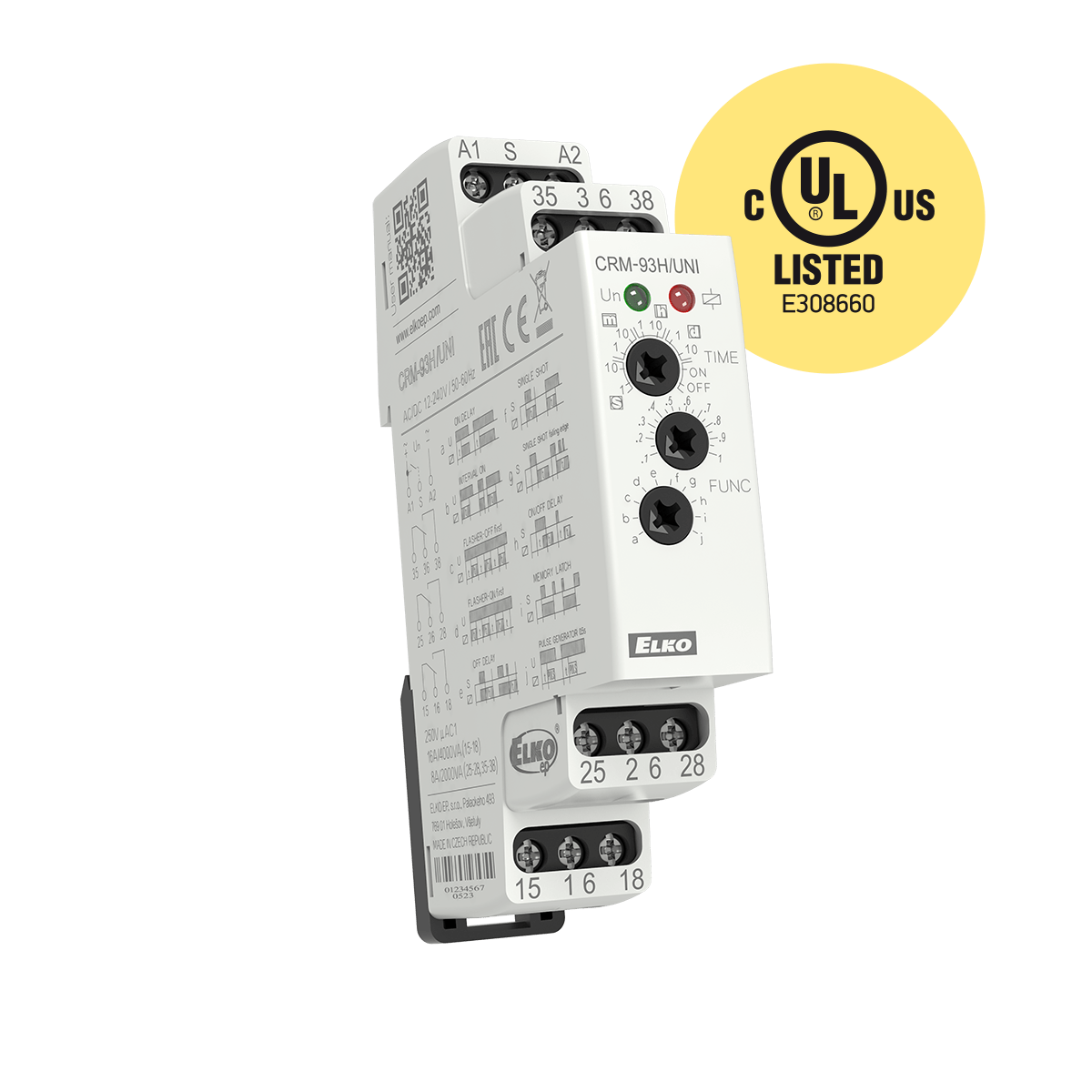

CRM-93H

Multifunction time relay

10 functions, time range 0.1s – 10days,
1x16A + 2x8A changeover

EAN: 8595188112468 Category:

Description

  • Multifunction time relay for universal use in automation, control and regulation or in house installations.
  • Comfortable and well-arranged function and time-range setting by rotary switches.
  • Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

  • Output: 3x CO, 8 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V or AC 230 V (50/60 Hz)
  • Time range: 0.1s – 10 days (10 ranges)
  • Number of functions: 10
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Download Datasheet

Datasheet_CRM-91H,CRM-93H
