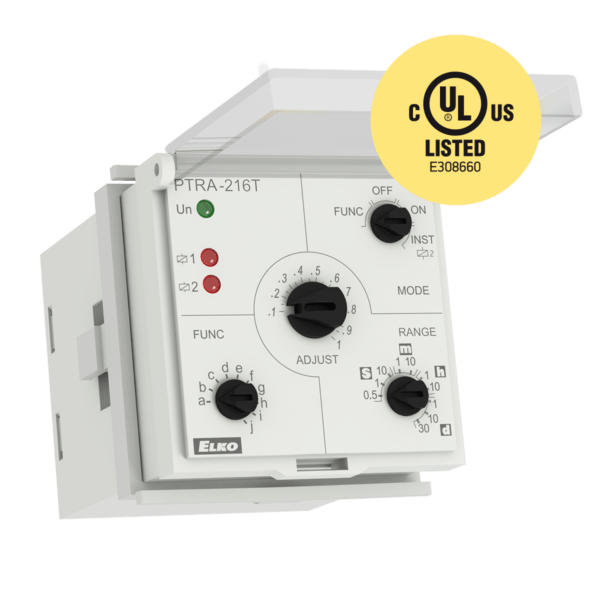

PTRA-216T

Multifunction time relay with three control inputs

11 pin octal socket, 10 functions,
time range 0.05s – 30days, 2x16A changeover

EAN: 8595188175609 Category:

Description

  • Multifunction time relay for universal use in automation, control and regulation or in house installations.
  • Three control inputs – START, INHIBIT, RESET.
  • Possibility to select the control element for fine time setting:
    PTRA-216T – rotary switch, for the possibility of using a sealable cover.
  • Mode selection – according to the set function, permanently closed, permanently open, and switching of the second output contact according to the supply voltage.
  • Universal supply voltage AC/DC 12 – 240 V.
  • Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

  • Voltage range: AC/DC 12 – 240V (AC 50 – 60Hz)
  • Maximum consumption: 2.5 VA / 1.5 W
  • Output contact: 2x changeover / SPDT 16 A (AgNi)
  • Functions available: 10
  • Mounting: 11 pin octal socket
  • LED indication: input – green, output – red
  • Protection degree: IP40 from front panel
  • Dimensions: 48 x 48 x 79 mm (1.7˝ x 1.7˝ x 3.1˝)
  • Weight: 107 g (3.77 oz)
