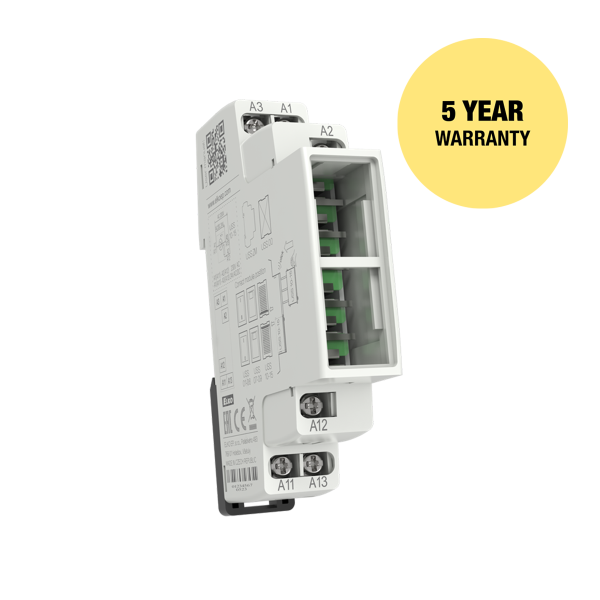

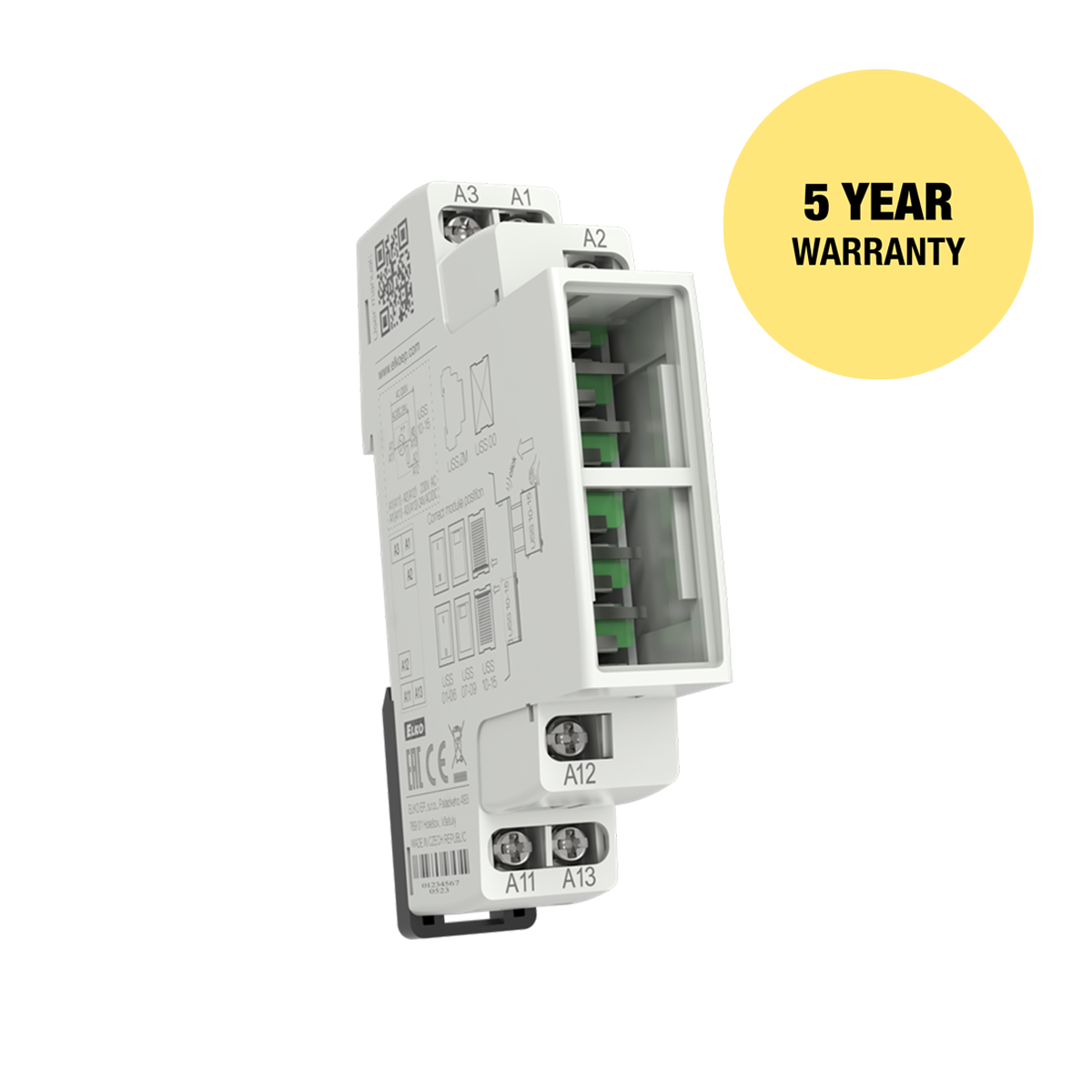

Description
- Independent switch units designed for flexible controlling and switching of power circuits.
- Different types of switches and signal units can be inserted into the basic module.
- Units are delivered as components and configured by the user.
- 16 types of units: switches, push buttons, signal lights of different colours including flashing lights units are replaceable also for future (for example when an application is changed, extended, etc…).
- Units are also replaceable in the future (for example when an application is changed, extended, etc…).
- It is possible to place up to two units into one MODULE (for example 2x switch, 2x signalling lights or combinations) = saves space in switchboard panels.
- 1-MODULE (90 x 17.6 x 64 mm / 3.5˝ x 0.7˝ x 2.5˝), DIN rail mounting.
- Operating temperature -20 °C to +55 °C (-4 °F to 131 °F).
- M3 screw with clamp terminals.
Technical Parameters
- Rated current / voltage:
- USS-01, USS-04, USS-05, USS-07, USS-08, USS-09: 6 A / 250 V AC
- USS-02, USS-03, USS-06/S, USS-06/R: 10 A / 250 V AC
- Signal supply voltage AC 230 V (A1-A2) or AC/DC 24 V (A1-A3)
- Operating temperature -20 °C to + 55 °C (-4 °F to 131 °F)
- Clamp terminals 3M with screw
- 1-MODULE, DIN rail mounting
