Description

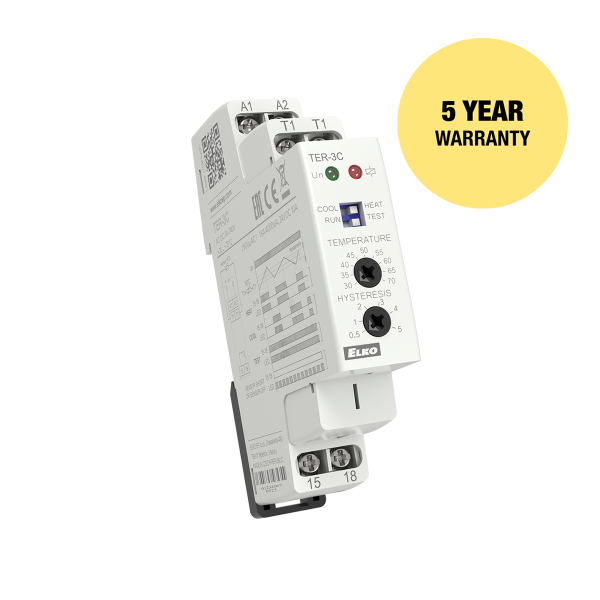

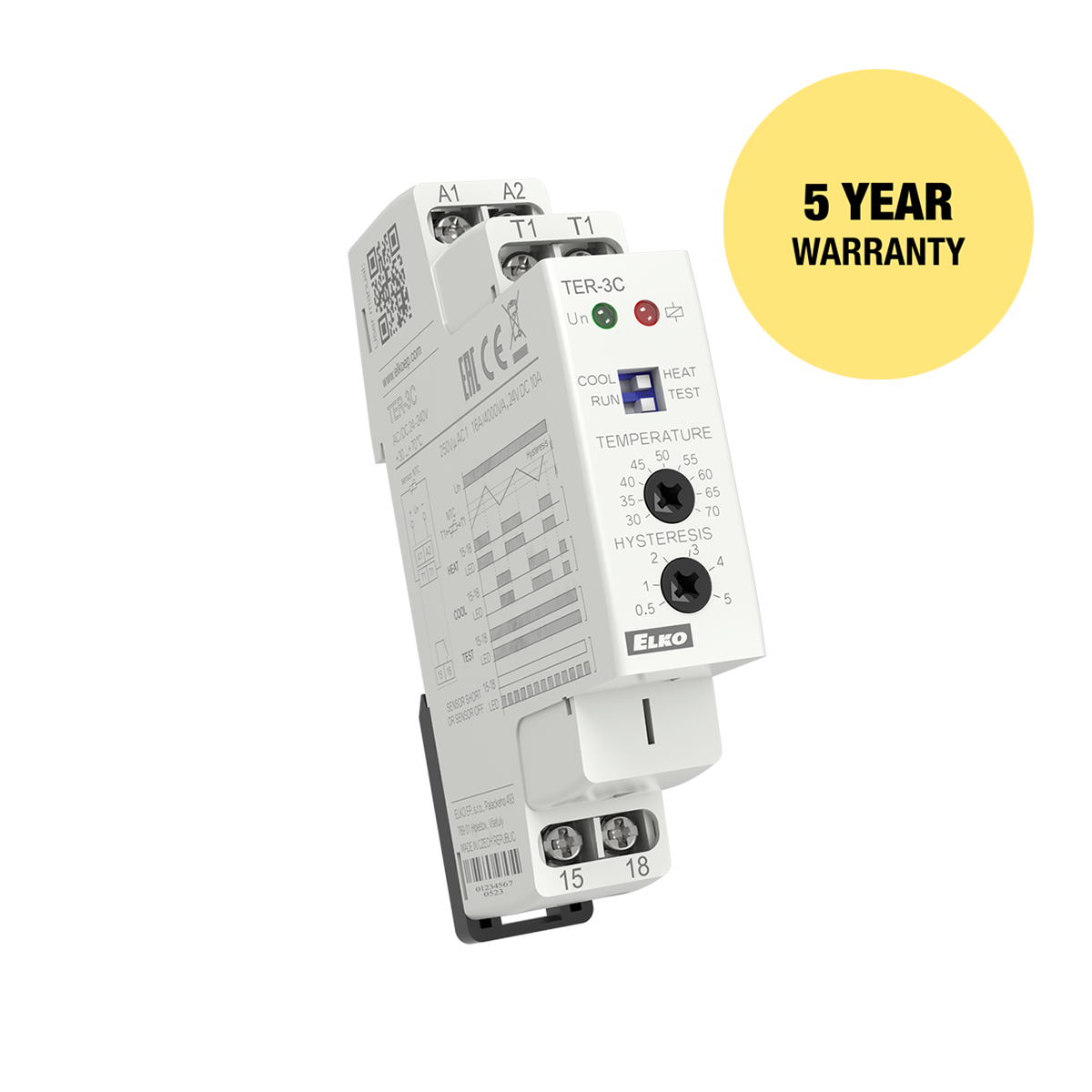

- Single thermostat for temperature monitoring and regulation in range -22 °F to 158 °F.
- It can be used for monitoring temperature e.g. in switchboards, heating systems, cooling systems, liquids, radiators, motors, devices, open spaces, etc.
- Possibility to set function “heating”/”cooling”.
- Adjustable hysteresis (sensitivity), switching by potentiometer in range 0.9 to 9 °F.
- Choice of external temperature sensors with double insulation in standard lengths of 9.8′,19.7′ and 39.4′.
- It is possible to place sensor directly on terminal block – for temperature monitoring in a switchboard or in its surroundings.
- Red LED indicates status of output, green LED indicates energization of the device.
Technical parameters
- Monitored range: -22 °F to 158 °F
- Thermosensor type: external, TC/TZ
- Output: 1x NO, 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 24-240 V (AC 50/60 Hz)
- Dimensions: 3.5″ x 0.7″ x 2.5″
