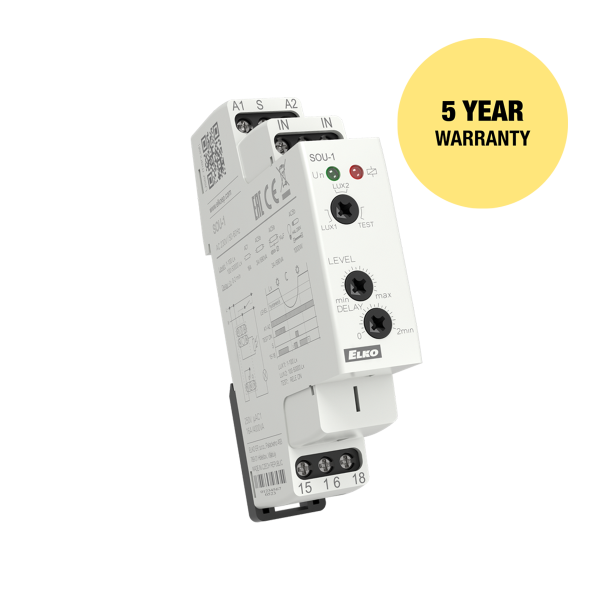

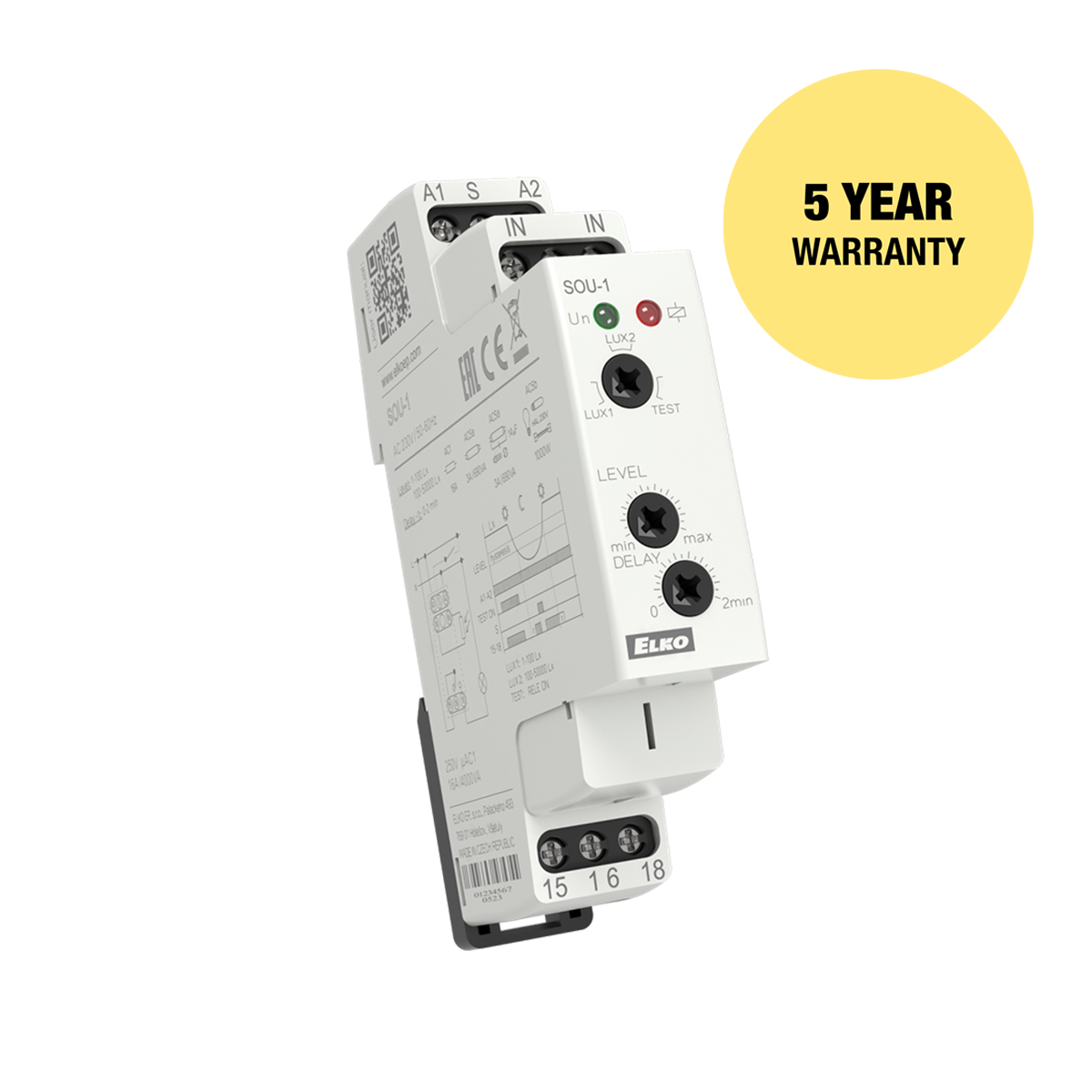

Description
- Used to control lights on the basis of ambient light intensity.
- Used for switching street illumination and garden lights, illumination of advertisements, shop windows, etc.
- Level of ambient intensity is monitored by an external sensor SKS-100 (not included) and output is switched according to set level on the device.
- Control input for additional control, e.g. time switch, preswitch etc.
- Level of illumination adjustable in two ranges: 1 – 100 lx and 100 – 50000 lx.
- Adjustable time delay to eliminate short term fluctuation in illumination.
Technical parameters
- Output: 1x CO, 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
- Sensor: external (SKS-100, not included)
- Adjustable light intensity: 1 – 50 000 lx (in 2 ranges)
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
