Description

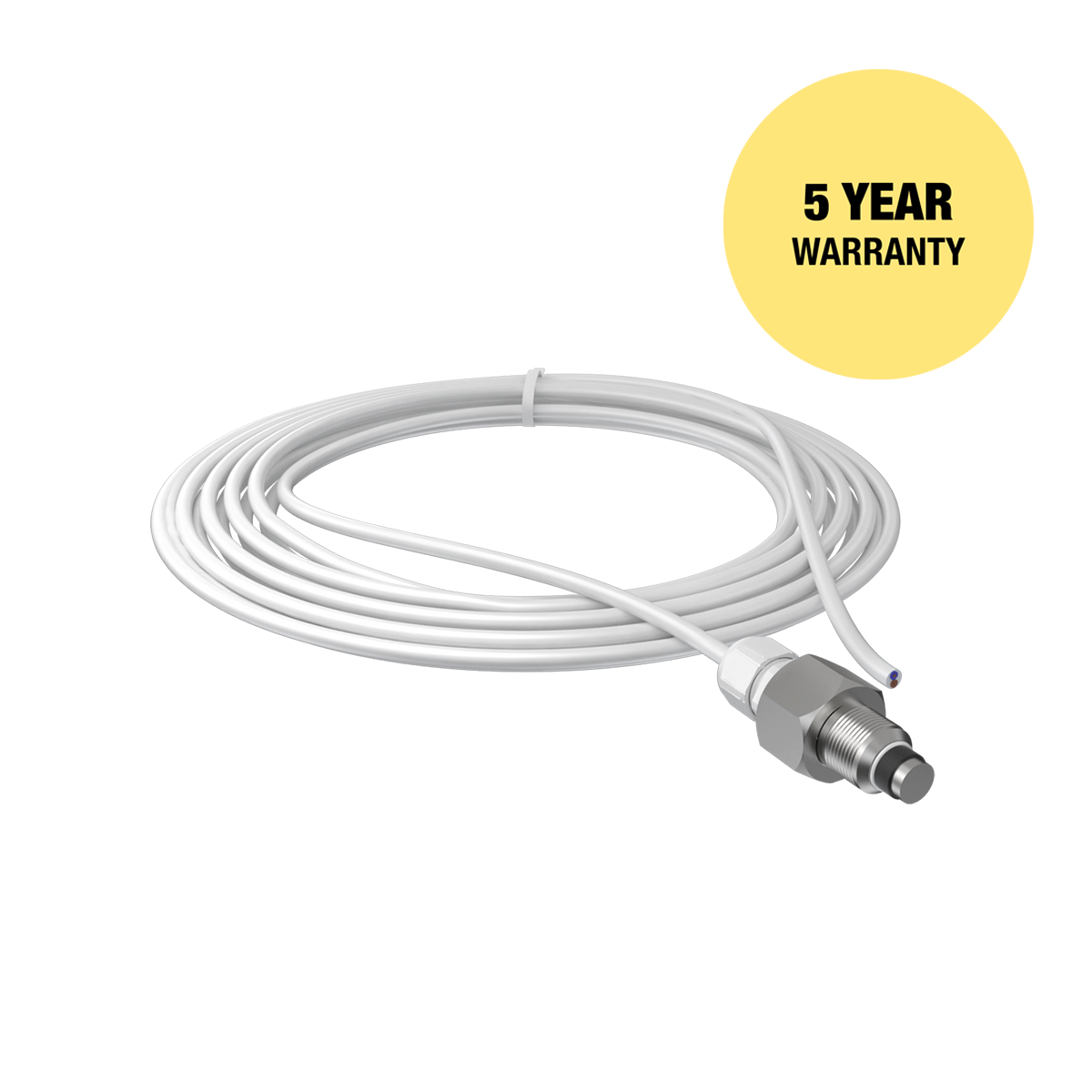

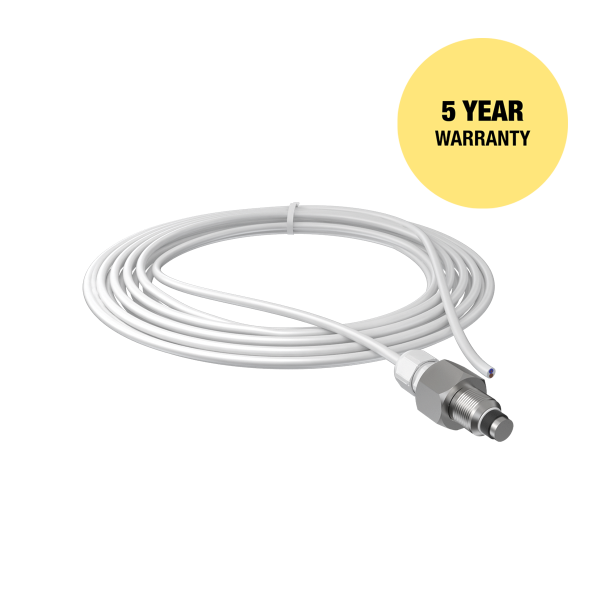

- Stainless probe to be used into demanding industrial environments, designated for screwing into tank wall or cover.
- The probe is installed in horizontal, vertical or in sidelong position on tank side or in tank cover.
- Installation is done by soldering or by fixing the nut. It is necessary to use a 1” screw. It is necessary to use an adequate torque with regards to a seal and operational overpressure in a tank.
- Sensor has connecting wire (length 9.8′), which is connected to sensor to scan electrode and sensor bushing connecting wire is double-wire PVC AWG 18, connection of wires:
- brown – scan electrode
- blue – sensor bushing
Technical parameters
- Connection screw: ⌀18 mm × 1.5 mm
- Protection degree: IP67
- Operating surroundings: place without the danger of detonation, temperature on screw max. 203°F.
- Operating temperature: -13 °F to 140 °F
- Pressure immunity:
- 77 °F – 4 MPa
- on 203 °F – 1.5 MPa
- Material: bushing and seal electrode: stainless steel AISI 304 (W.Nr. 1.4301)
- Insulation insert of electrode:
PTFE. - Internal material: self-extinguishing epoxide resin.
- Total sensor lenght: 2.58 ”
- Weight: 8.4 oz
- Weight (without cable): 3.3 oz
