Description
- To be used in electric conductive fluids and mechanically polluted fluids within a temperature range of 33.8 °F to 176°F.
- Suitable for use in drinking water.

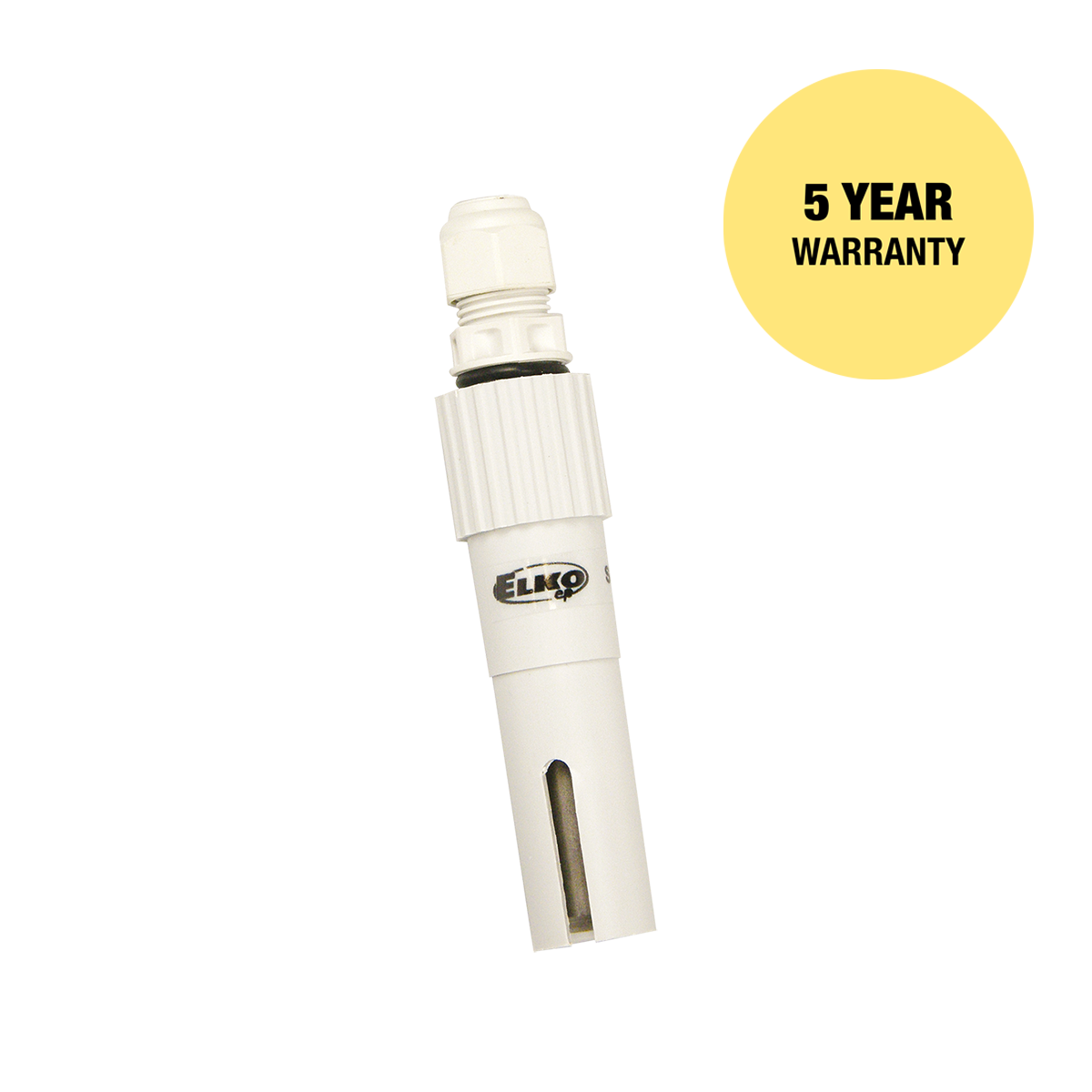

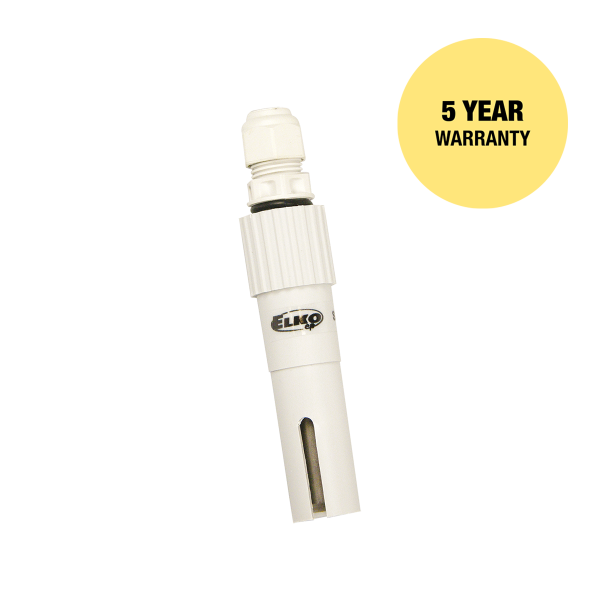

- Stainless steel one-pole electrode reside in PVC cover, intended for tank wall mounting or mounting by socket.
- To ensure correct function of the sensor, it is necessary to have the electrode without dirt which could disable the connection of the electrode and fl uid and thus lead to malfunction.
Technical parameters
- Max. wire profile: AWG 10.
- Recommended wire: D05V-K
- Installation:
- conductor wire is connected by feazing of two brass screws to stainless steel electrode
- conductor is caulked by bushing Pg7 with protection degree IP68
- Weight: 1.7 oz
- Dimensions:
- max. diameter 0.8”
- length 96 mm 3.8”
