Description
- switching stabilized power supplies with fixed output voltage, for mounting into an installation box

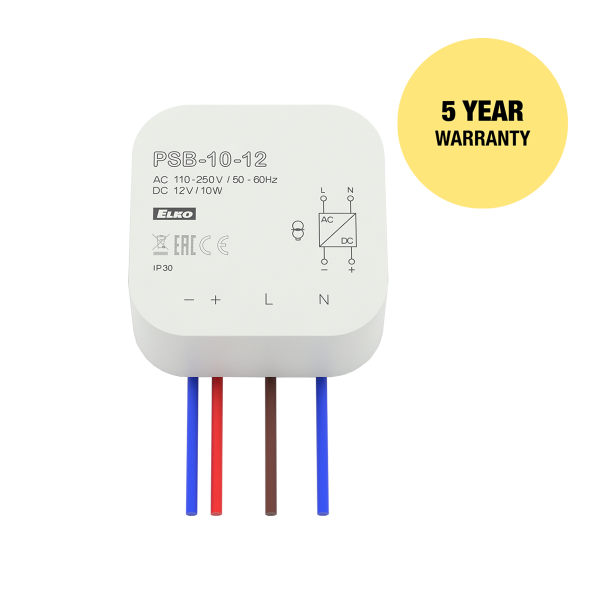

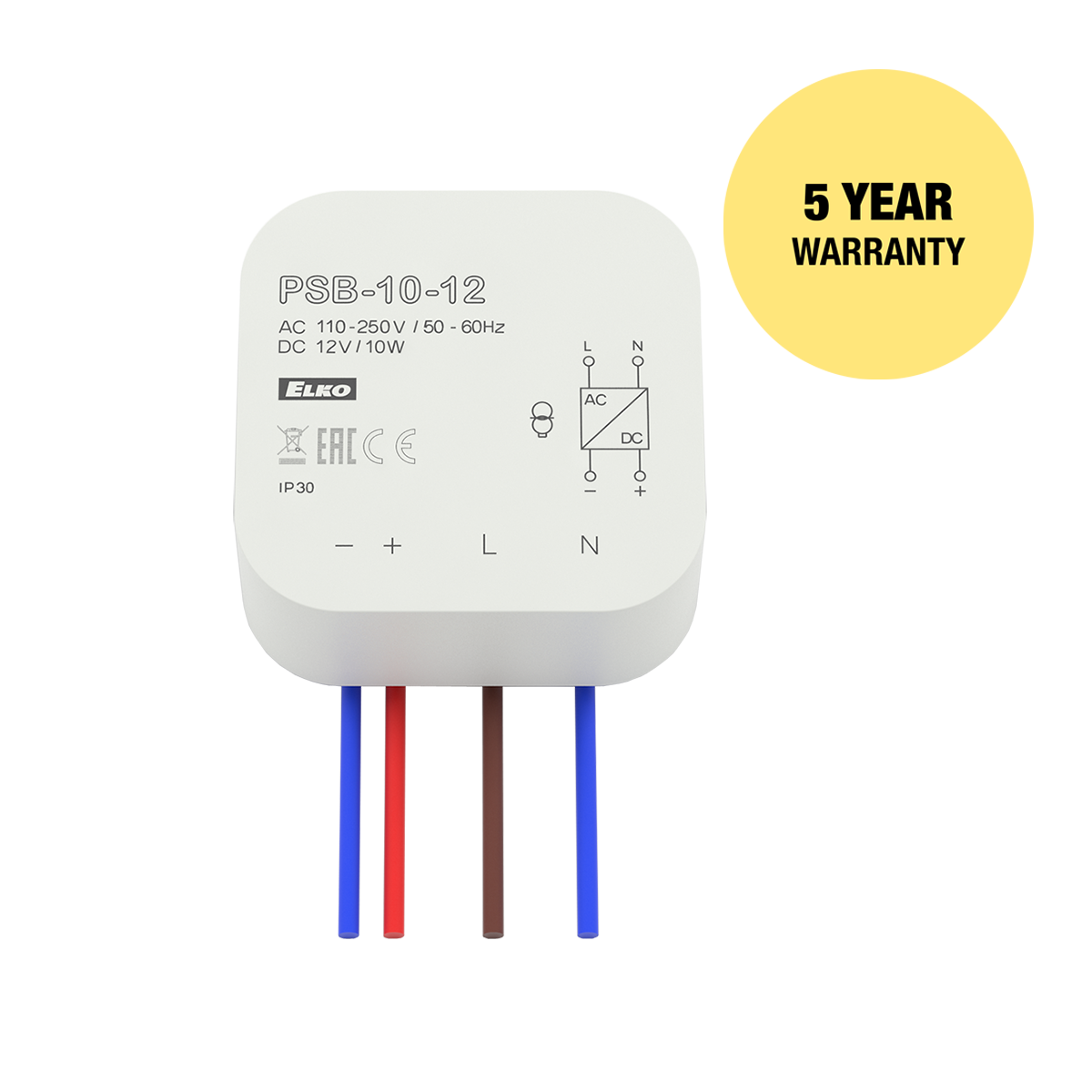

- PSB-10-12 – stabilized power supply 12V/10W
- PSB-10-24 – stabilized power supply 24V/10W
- Output current is limited by electronic fuse, in case maximal current is exceeded, the device switches off and after a shot time interval it again switches on.
- Temperature protection – if temperature is exceeded, the device switches off and after cooled down, it switches on again.
Technical parameters
- Output voltage: DC 12 V; DC 24 V
- Max. load: 0.8 A/10 W; 0.4 A/10 W
- Housing: BOX
- Supply voltage (frequency): AC 110-250 V (50/60 Hz)
- Protective circuit: short circuit, current and temperature overload (from 120% of rated power)
- Dimensions: 49 x 49 x 21 mm (1.9˝x 1.9˝x 0.8˝)
