Description

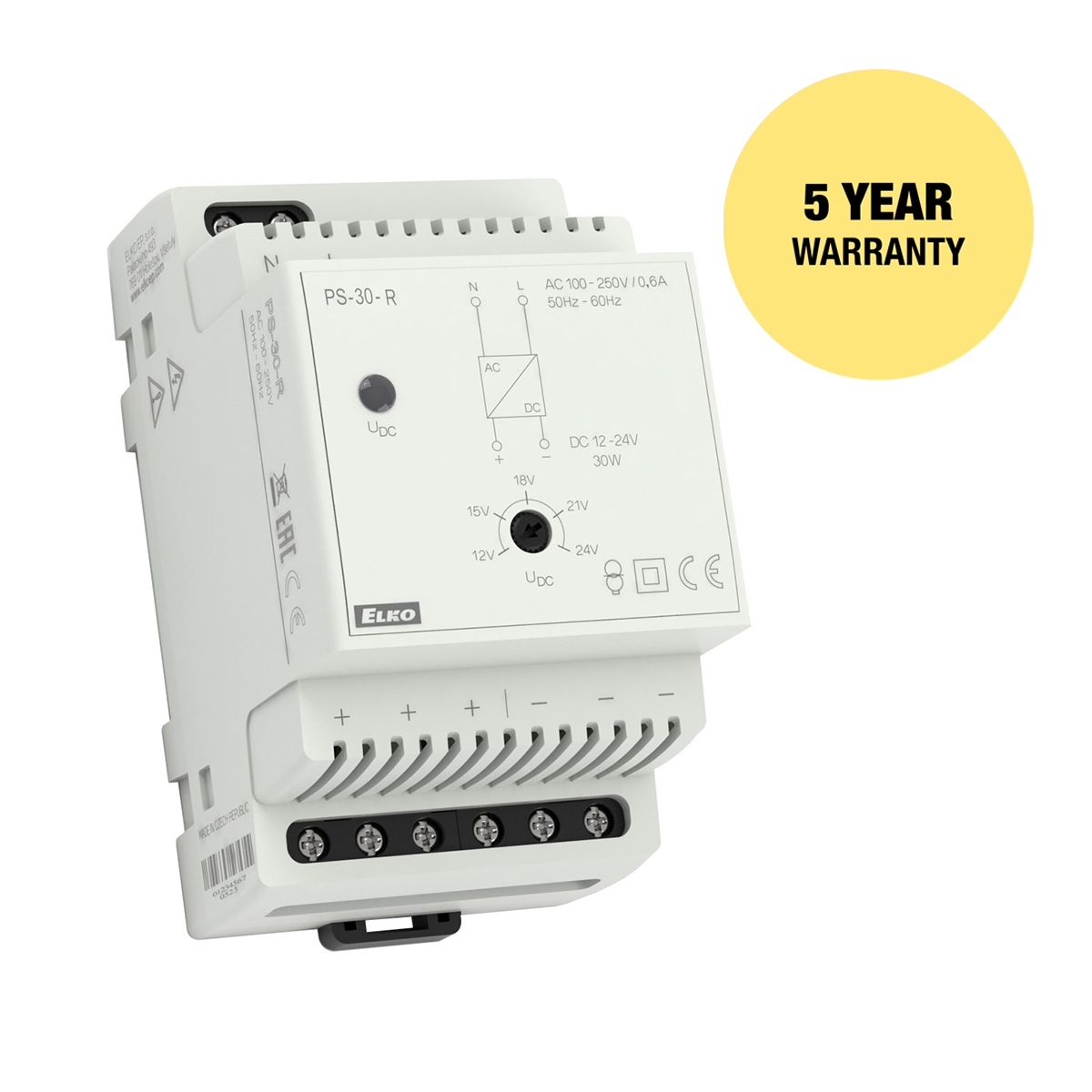

- Switching stabilized adjustable power supply 12-24 V/30 W.
- The output current is limited by an electronic fuse, when the maximum current is exceeded, the source switches off and switches on again after a short time delay.
- Thermal protection – in case of thermal overload the source switches off, after cooling it switches on again.
Technical parameters
- Output voltage: DC 12-24 V
- Max. load: 2.5-1.2 A/30 W
- Housing: 3-MODULE
- Supply voltage (frequency): AC 100-250 V (50/60 Hz)
- Protective circuits: short circuit, current and temperature overload (from 120% of rated power)
- Dimensions: 90 x 52 x 65 mm (3.5˝ x 2˝ x 2.6˝)
