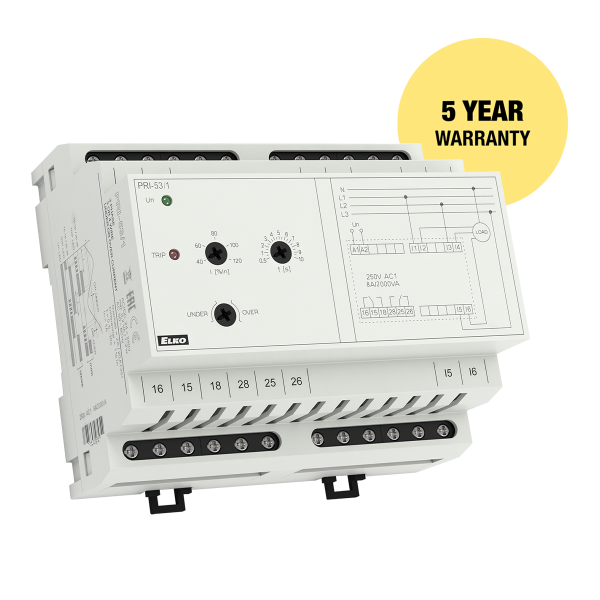

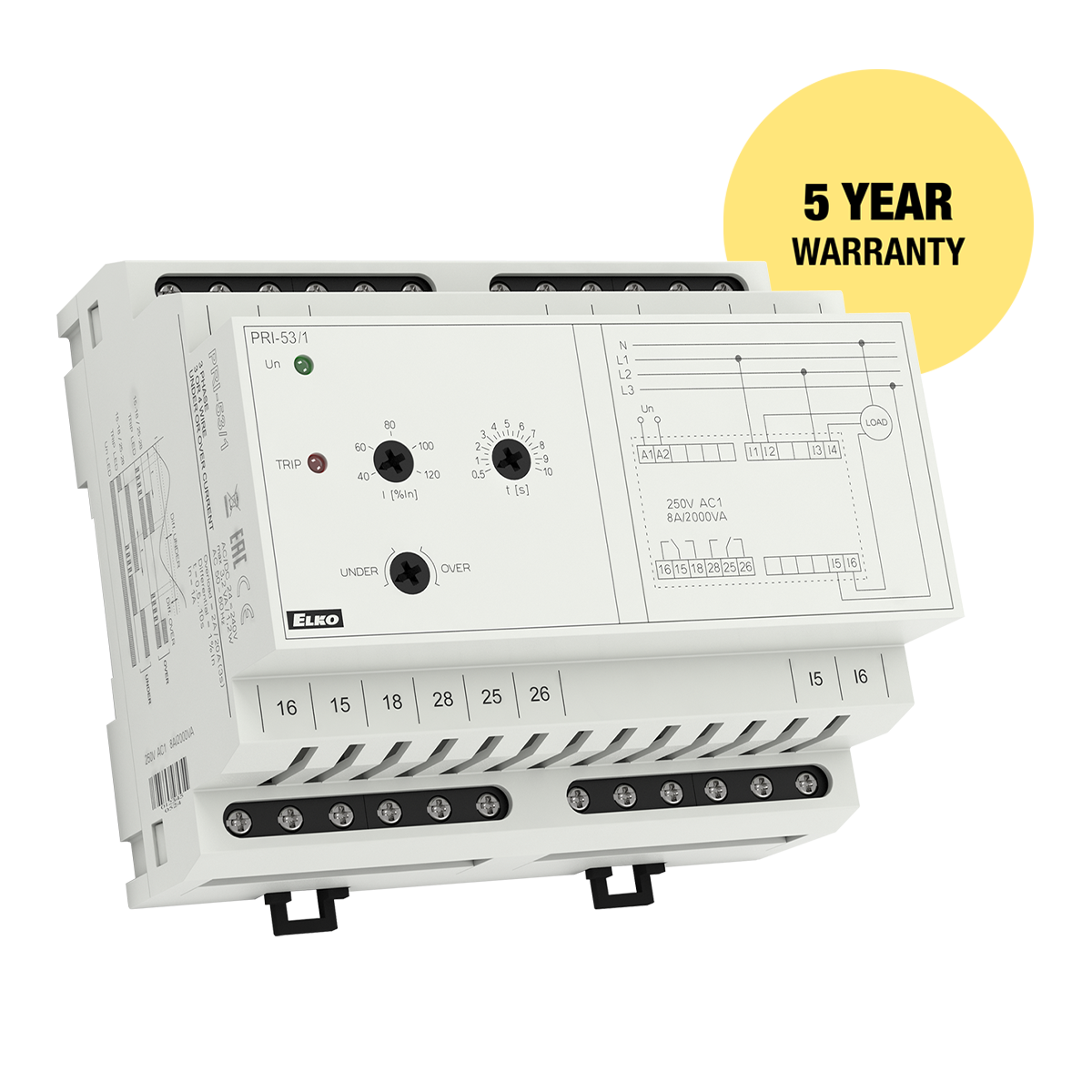

Description
- It is intended for monitoring the current in 3-phase devices (e.g. cranes, motors, etc.).
- 24 – 240 V AC/DC power supply, galvanically separated from the circuit of the monitored current.
- Adjustable delay level (when exceeding the preset limit).
- Adjustable function:
- UNDER – monitors the drop in the strength of current below the preset value (I)
- OVER – exceeding the preset value (I).
Option of connecting via the current transformers to increase the value of the monitored current.
Technical parameters
- Voltage type: AC
- Monitored levels: overcurrent and undercurrentMonitored range: 2-6 A (50/60 Hz)
- Output type: 2x CO, 8 A
- Housing: 6-MODULE
- Supply voltage: AC/DC 24 – 240 V (AC 50/60 Hz)
- Dimensions: 90 x 105 x 64 mm (3.5˝ x 4.1˝ x 2.6˝)
