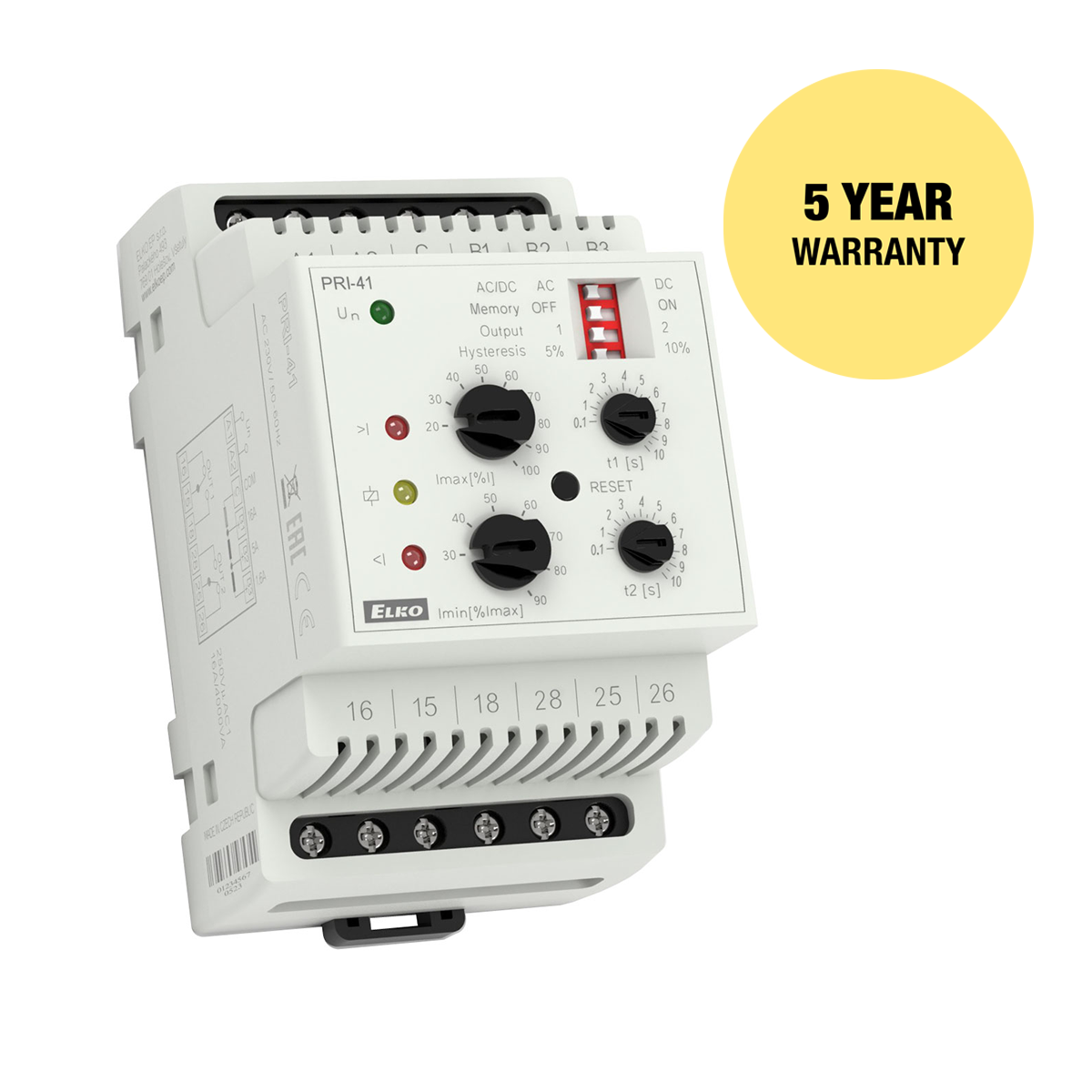

Description
- Used to monitor overloading/relief (machine, motor, etc.), check consumption, diagnostics on a remote device (burning, short circuit, increased current draw, etc.)
- Relay designed for monitoring DC and AC currents in three ranges.
the relay controls the current size in two independent levels (Imax, Imin). - Setting the monitored level Imax (in % of range).
- Setting the monitored level Imin. in % of the set upper limit – function HYSTERESIS.
- Function of second relay (independently/in parallel).
- Adjustable delay for eliminating short-term outages and surges for every level independently.
- Galvanically separated power supply from monitoring inputs.
- Output contact: for each current level.
Technical parameters
- Voltage type: AC / DC
- Monitored levels: overcurrent and undercurrent
- Function: HYSTERESIS
- Monitored range: 3 inputs: AC/DC 3,2 – 16 A, 1 – 5 A, 0,32 – 1,6 A
- Output type: 2x CO, 16 A
- Housing: 3-MODULE
- Voltage range: AC/DC 24-240 V, AC/DC 24 V, AC 230 V
- Supply voltage: AC/DC 24 – 240 V (AC 50-60 Hz)
- Dimensions: 90 x 52 x 65 mm (3.5˝ x 2˝ x 2.6˝)
