Description

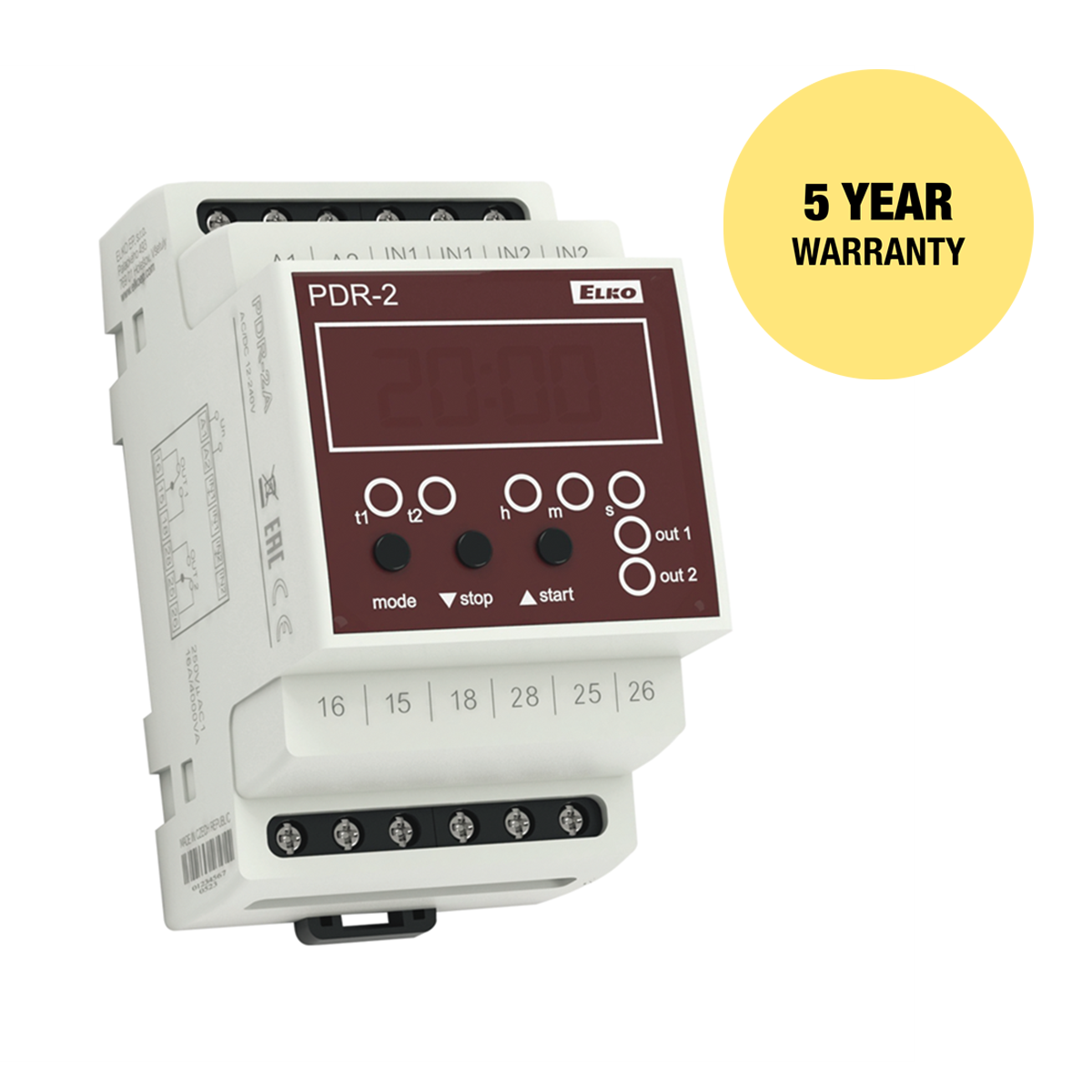

- Multifunction programmable digital relay with 4 digit red LED display.
- Control and setting are done by 3 buttons, user-friendly menu, absolute accuracy in timer setting, time countdown on a display, galvanically separated START and STOP control inputs with UNI supply.
- Thanks to its complexity, it is possible to program also more demanding time functions by using 2 independent times.
- 2 independent times, with combination of 2 inputs and 2 outputs.
- 10 functions, 1 output of 10 functions can be assigned to each relay = 2 relays in one device.
2 independent times in range: 0.01 s – 100 hrs.
Technical parameters
- Output: 2x CO, 16 A
- Housing: 3-MODULE
- Supply voltage (frequency): AC/DC 12-240 V or AC 230 V (AC 50/60 Hz)
- Time range: 0.01 s – 100 hrs
- Number of functions: 10
- Dimensions: 3.5″ x 2″ x 2.6″
