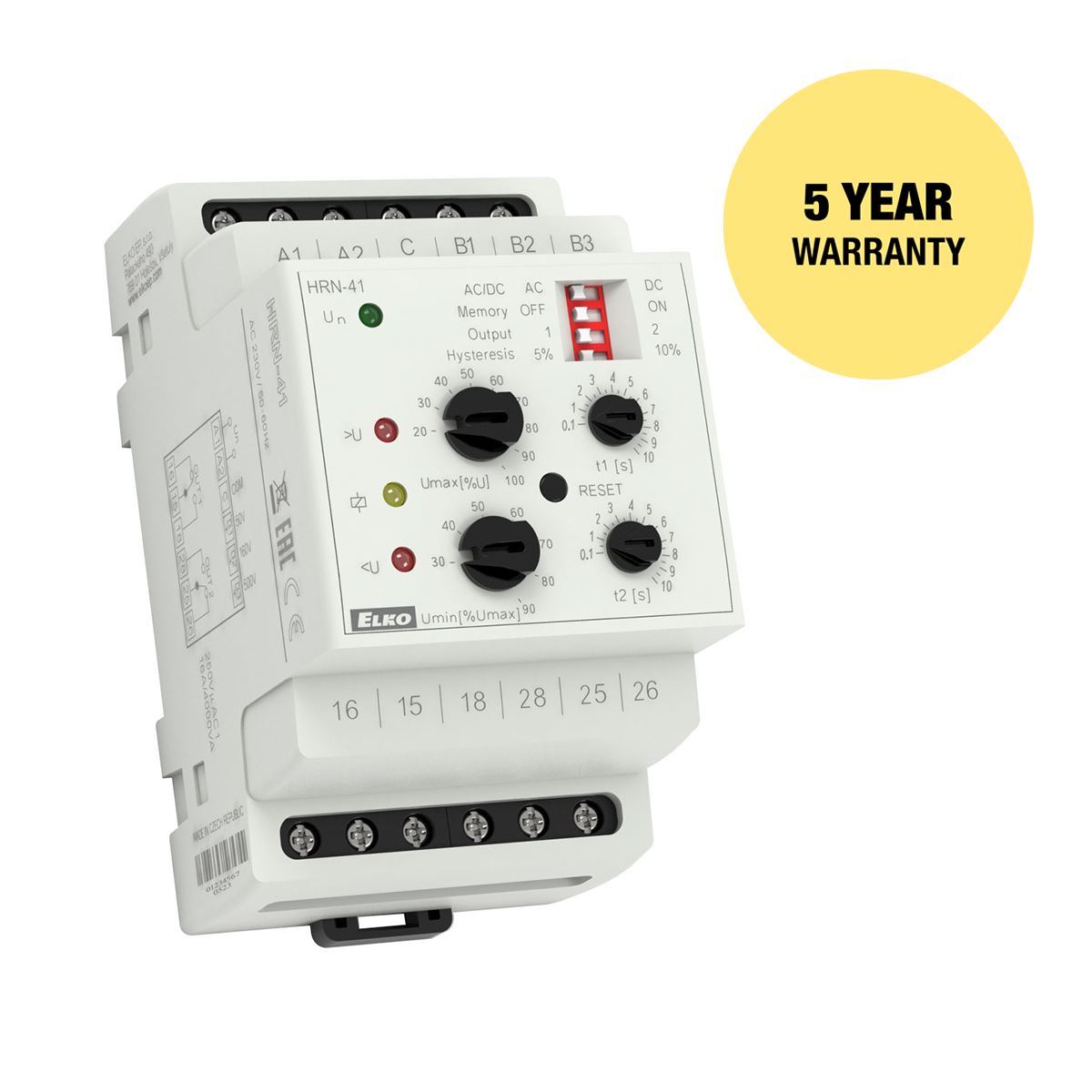

Description
- Relay is used for monitoring AC or DC voltage in three ranges.
- Monitors the level of voltage in two independent levels (Umin, Umax).
- Setting the monitored upper level (Umax) in % of range.
- Setting the monitored lower level (Umin) in % of the set upper limit.
- The selectable function of output contacts (independently/in parallel).
- Independently adjustable time delay of both levels (eliminating short-term drops and spikes).
- Galvanically separated power supply from monitoring inputs.
- Output contact for each monitored voltage level.
Technical parameters
- Type of monitored voltage: AC / DC
- Monitored levels: undervoltage and overvoltage
- Functions: HYSTERESIS
- Monitored range: 3 inputs: 10-50 V; 32-160 V; 100-500 V
- Supply voltage: 2x CO, 16 A
- Housing: 3-MODULE
- Power supply: AC/DC 24-240 V, AC 400 V
- Dimensions: 3.5″ x 2″ x 2.6″
