Description

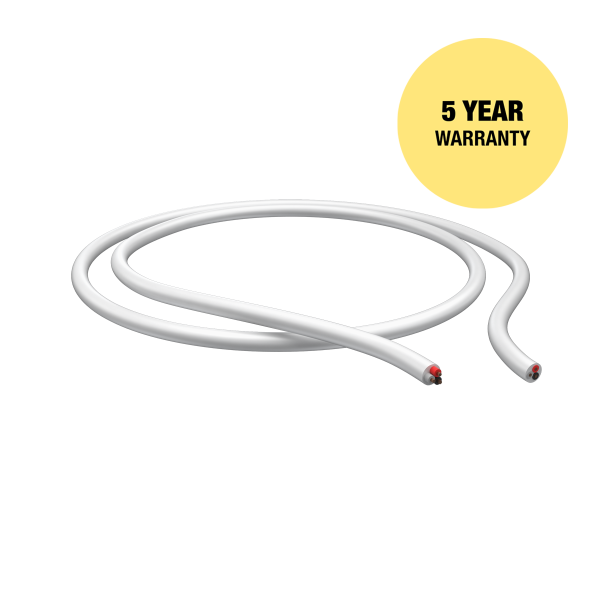

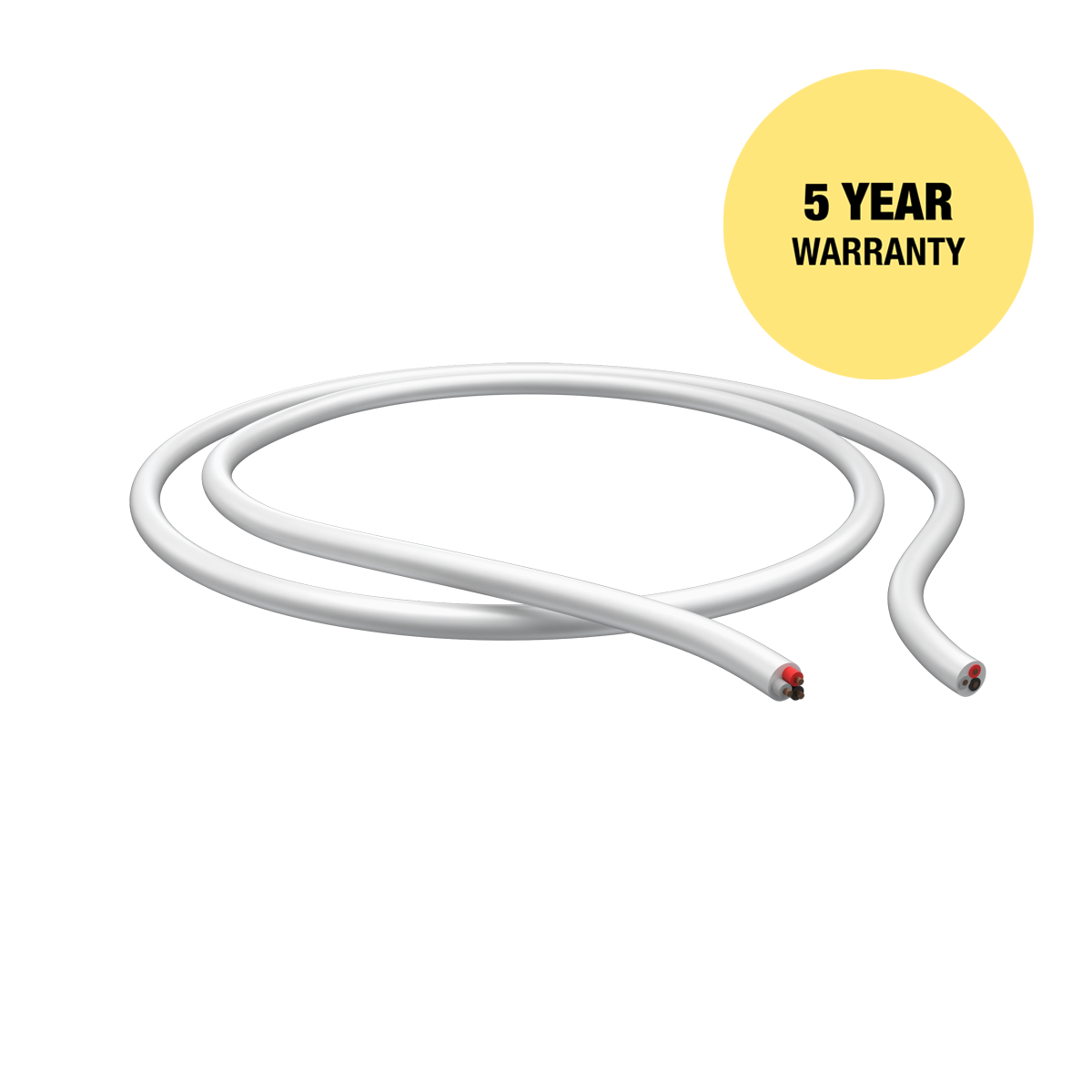

- Cable for probes SHR-1 and SHR-2, 3x AWG 18 with a certification for drinking water, 39.37″.
- Construction:
- bright copper stranded core of hole
- core insulation of special PVC
- sheath of special PVC
- Technical specifications and usage:
- the product meets requirements for direct and permanent contact with drinking water
- usable in up to 158 °F
- suitable for submersible conductivity probes for the boreholes, wells and tanks
- suitable for probes used for level detection of conductive liquids.
- cable capacity is max. 12.3 nF / 328′
Technical parameters
- Rated voltage: 300 / 300 V
- Test voltage: 2 kV
- Capacity: max. 12.3 nF / 328′
- Core diameter with insulation: 0.12″
- Overall diameter of cable: 0.31″
- Section: AWG 18
- Length: 39.37″
