Description

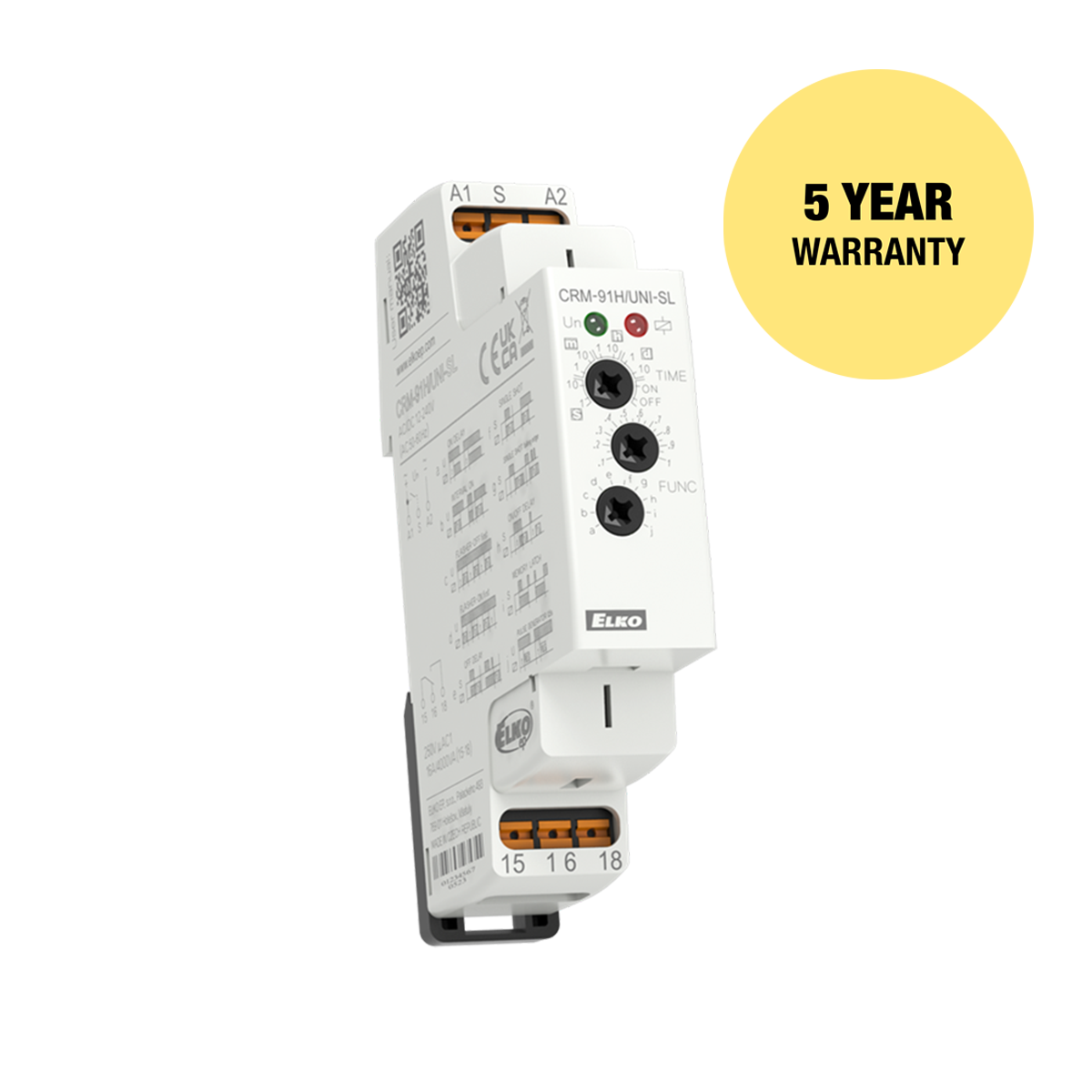

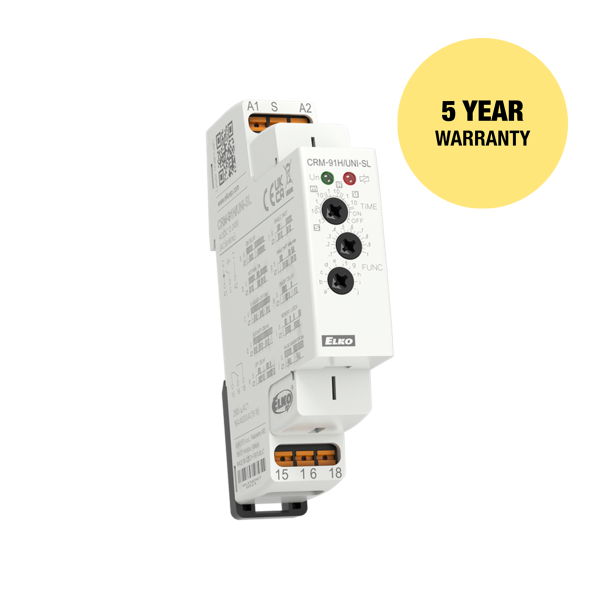

- Multifunction time relay for universal use in automation, control and regulation or in house installations
- Universal supply voltage AC/DC 12 – 240V
- Easy connection with screw-less terminals
- Comfortable and well-arranged function and time-range setting by rotary switches.
- Time scale 0.1 s – 10 days divided into 10 ranges:
- (0.1 s – 1 s / 1 s – 10 s / 0.1 min – 1 min / 1 min – 10 min / 0.1 hrs – 1 h / 1 h – 10 hrs / 0.1 day – 1 day / 1 day – 10 days / only ON / only OFF)
- Output contact: 1x changeover / SPDT 16A
- Multifunction red LED flashes or shines depending on the operating states
Technical parameters
- Output: 1x changeover 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V
- Time range: 0.1 s – 10 days (10 ranges)
- Number of functions: 10
- Dimensions: 3.5″ x 0.7″ x 2.5″
