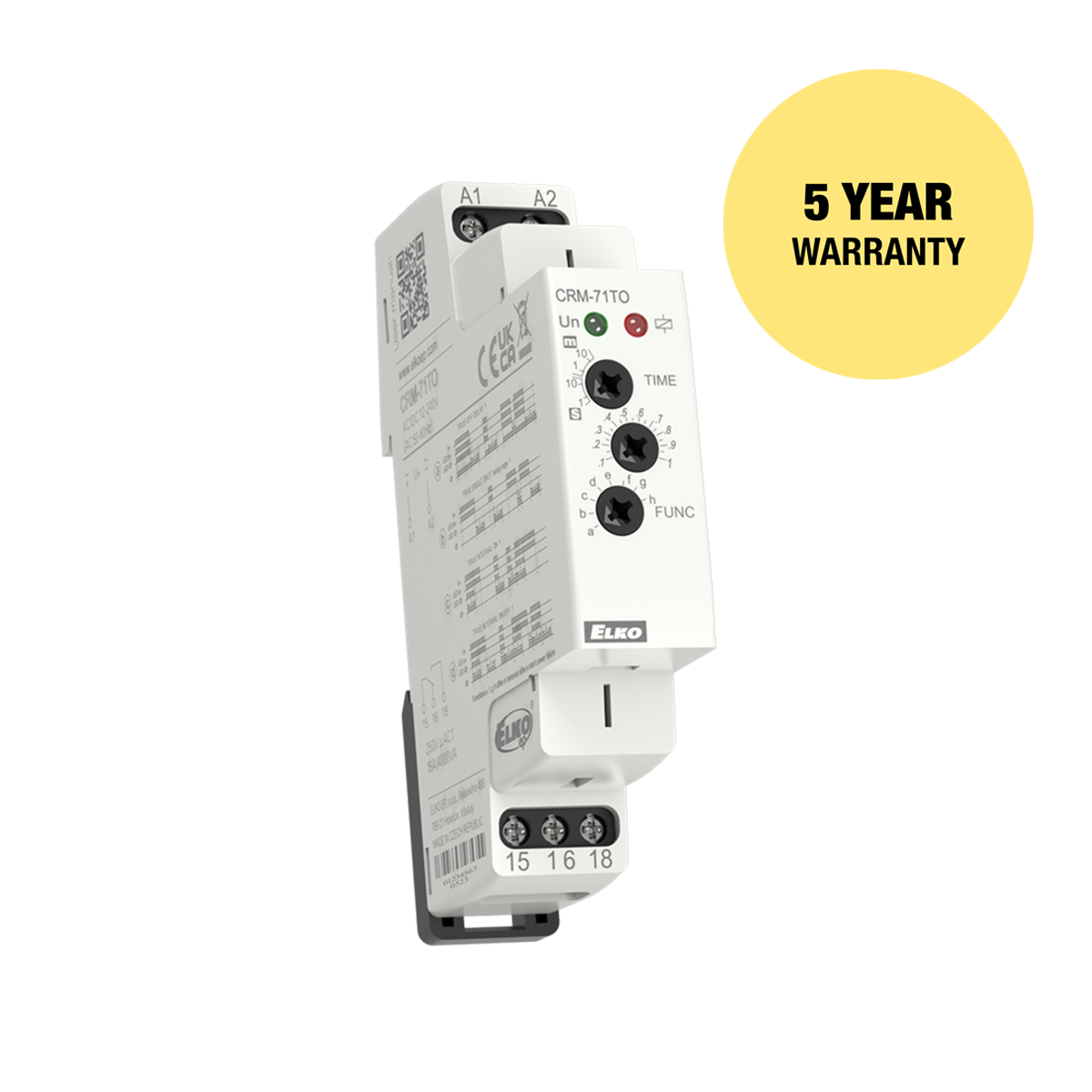

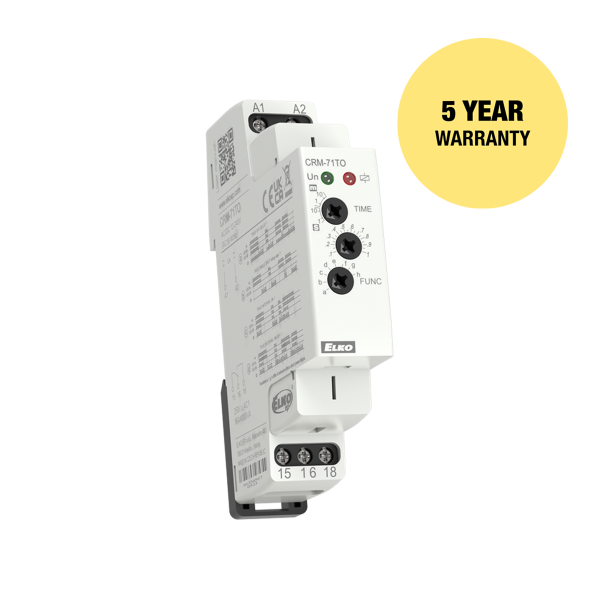

Description
- The relay keeps timing according to the set function even after the power supply is disconnected.
- It can be used for delayed switching off of a backup power supply and systems in case of power failure (e.g. emergency lighting, emergency ventilation, electrically and automatically operated doors – lifts, escalators).
- Comfortable and well-arranged time delay (t) setting by rotary switch.
- Adjustable time delay from 0.1 s to 10 m is split into four ranges: (0.1 s – 1 s / 1 s – 10 s / 0.1 m – 1 m / 1 m – 10 m)
- Power supply outages must be in the order of tens to hundreds of milliseconds.
- Multifunction red LED flashes or shines depending on the operating states.
Technical parameters
- Output: 1x changeover, 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
- Time range: 0.1s – 10 min (4 ranges)
- Number of functions: 8
- Dimensions: 3.5″ x 0.7″ x 2.5″
