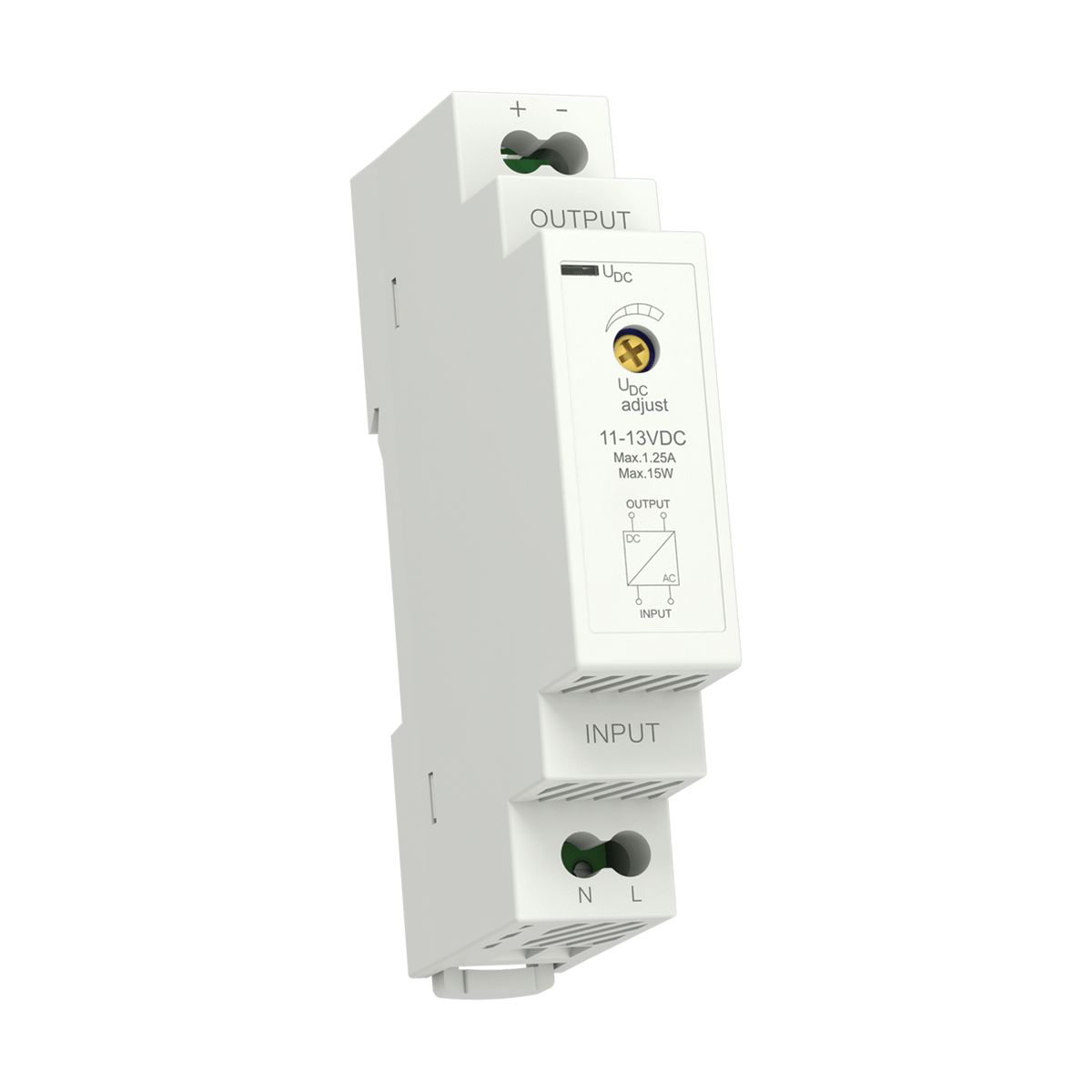

PS1M

$39,90

Power supply

DC 12V/15W
DC 24V/15W

EAN: Select Variant SKU: N/A Category:

Description

  • Rated output voltage 12 or 24V DC with the possibility of regulation
  • Hight efficiency of up to 90%
  • Low ripple & noise
  • Wide voltage range input 100-240V AC
  • Protection: Over load, Over voltage and Short circuit
  • LED indication of output voltage
  • Continuously adjustable output voltage to adapt tot the specific application, e.g. the need to compensate for the voltage drop caused by the lenght of the line.

Technical parameters

  • Voltage range: AC 100 – 240 V (50 – 60 Hz)
  • Burden with full load (max.):
    • 16 W / 30 VA (PS1M-15/12V)
    • 17,5 W / 32 VA (PS1M-15/24V)
  • Electronic fuse against: short circuit, overload and overvoltage
  • Protection degree: IP20
  • Dimmension: 90 x 18 x 58 mm
  • Weight: 78g

Download Datasheet

Datasheet_PS1M, PS2M, PS3M, PS4M

Additional information

Output Voltage

DC 12V/15W, DC 24V/15W
