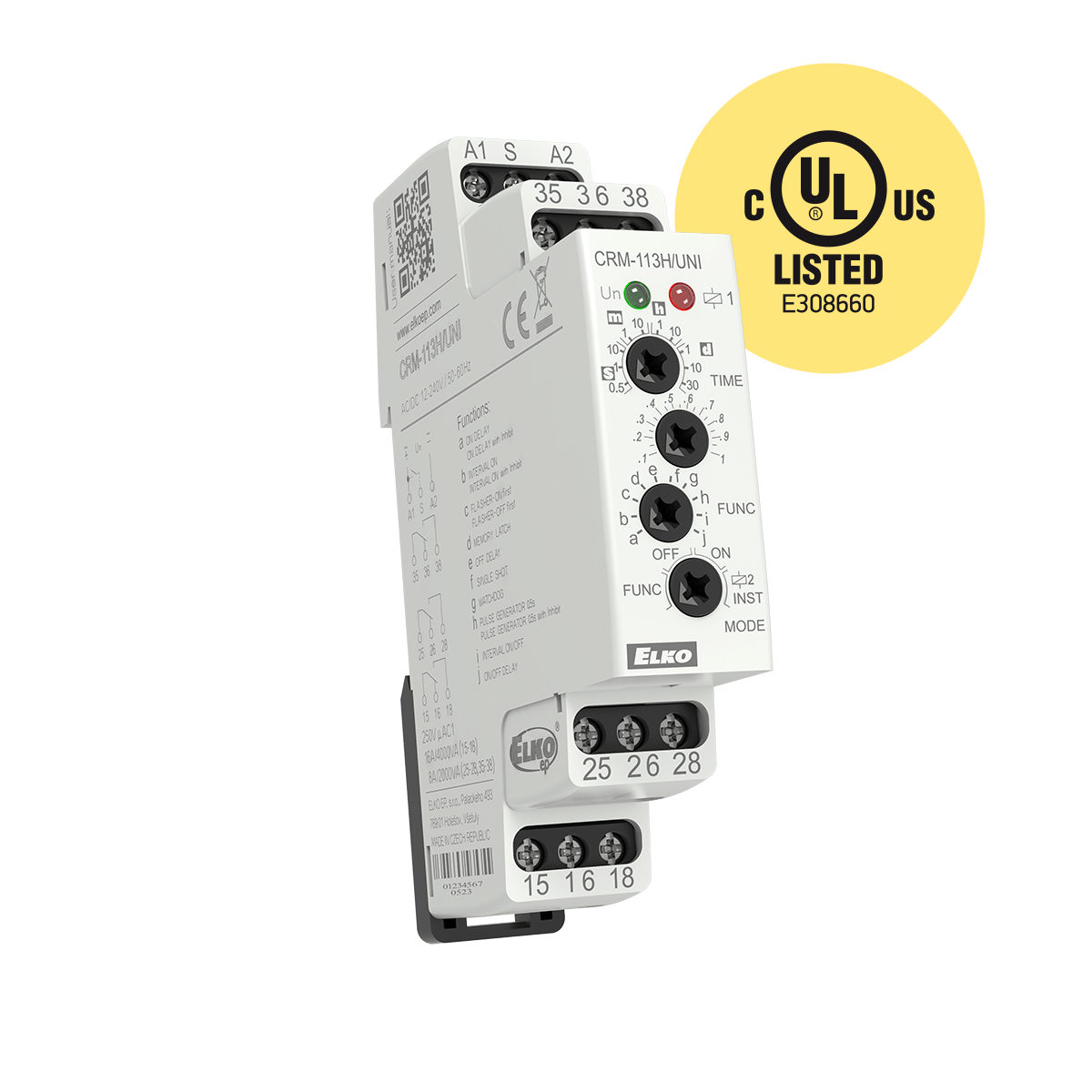

CRM-113H

Multifunction time relay with inhibit delay

10 functions, time range 50ms – 30days,
1x16A + 2x8A changeover

EAN: 8595188180634 Category:

Description

  • Multifunction time relay for universal use in automation, control and regulation or in house installations.
  • All functions initiated by the supply voltage, except for the fl asher function, can use the control input to inhibit the delay (pause).
  • Mode selection – according to the set function, permanently closed, permanently open, switching of the second output contact according to supply voltage (CRM-113H).
  • Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

  • Output: 3x CO, 8 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
  • Time range: 50 ms – 30 days (10 ranges)
  • Number of functions: 10
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Download Datasheet

Datasheet_CRM-111H, CRM-113H
