- Power relay used for switching larger load output, strengthen or „multiplying“ contacts of the existing device.
- Relays VS316/24, VS316/230 enable connection to a 3-phase circuit.

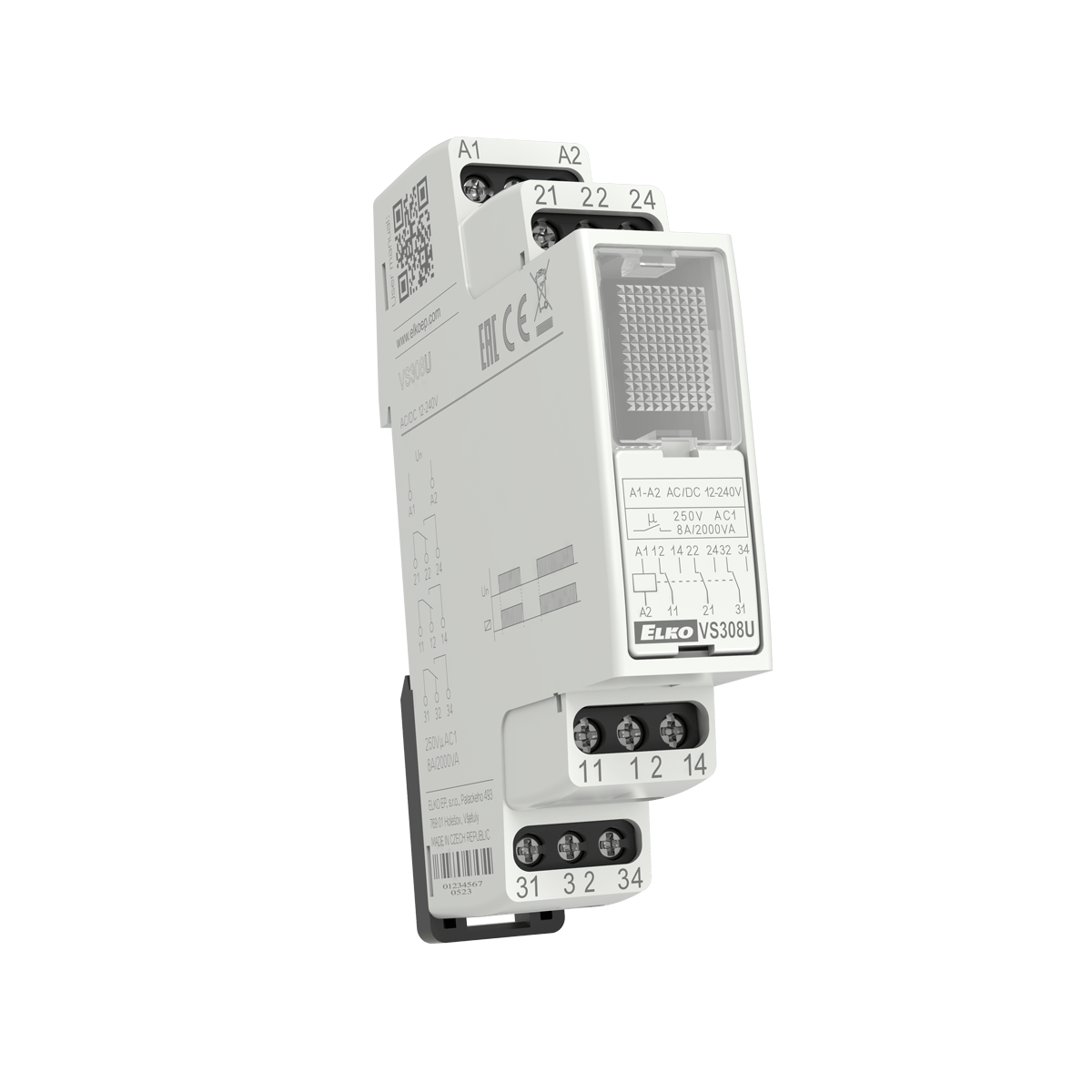

- In the design 1-MODULE , DIN rail mounting, output status indicated by high intensity LED with choice of LED color (red, green, yellow, blue or white LED*).
- VS116/B230 MINI, mounting in installation box or ceilings, enabling switching of lights, motors for blinds or awnings.
- For VS116/B230 status of output indicated by LED on front panel of device.
- Voltage range: AC/DC 12-240 V / 50-60 Hz
- Burden (max.): AC 0.7 – 3 VA/ DC 0.5 – 1.7 W
- Number of contacts: 3 x changeover/TPDT 8 A (AgNi / Silver Alloy
- Mounting: DIN rail EN 60715
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
- Weight: 80 g (2.8 oz.)
